Uniroyal

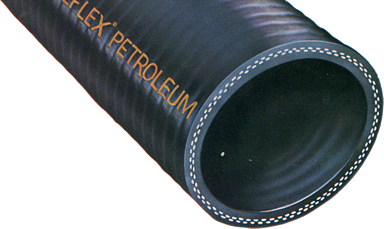

Hardwall Petroleum Hose

Hardwall Petroleum Hose

Types:
Petroleum Hose     Sub Type: Petroleum Suction & Discharge Hose


Vendor: Uniroyal

Application:

A lightweight, kink-resistant hardwall hose for suction and discharge service handling petroleum products such as fuel oil and gasoline. Used in loading and unloading tank cars and trucks and bulk storage tanks. Extremely useful in petrochemical plants. Excellent for oil spill cleanup. Resistant to mild acids and alkalis and can also be used with some chemicals. See Chemical Resistance Table in this catalog for use with specific chemicals, acids and alkalis.

Features:

  • Crush and kink-resistant.
  • Takes full vacuum in all sizes.
  • Retains flexibility and vacuum characteristics at temperatures from — 20° to 180°F ( — 29° to 82°C).
  • Abrasion and scuff-resistant black cover marked with continuous indent stripe.

Tube:

100% polyester

Reinforcement:

embedded helically wound wire reinforcement

Temperature:

-20° to 180°F

Couplings:

Combination nipple, expansion ring, long and short shank and quick disconnect couplings with appropriate clamps or bands. Two or three serrations on shanks recommended. Long shank couplings for medium pressures. Expansion ring couplings for high pre

Lengths:

Standard package for 1-1/4 to 2 in. ID is two 50-foot lengths or two 60-foot lengths. Standard package for 3 and 4 in. ID is one 50-foot length or one 60-foot length. Longer lengths available on special order.

Colors:

black

Nominal inside diameter Nominal outside diameter Maximum working pressure Approx. weight w/o fittings Minimum bend radius Request a Quote
(in.) (mm) (in.) (mm) (psi) (MPa) (lbs/ft) (kg/m) (in.) (mm)
1-1/2 38.1 2 50.8 300 2.07 0.8 1.191 6 152 Request Quote
2 50.8 2-1/2 63.5 300 2.07 1.1 1.652 8 203 Request Quote
2-1/2 63.5 3 76.2 300 2.07 1.34 1.994 10 254 Request Quote
3 76.2 3-9/l6 90.5 250 1.72 2 2.992 12 305 Request Quote
4 102 4-5/8 117.5 200 1.38 3.78 4.167 16 406 Request Quote
