Gates

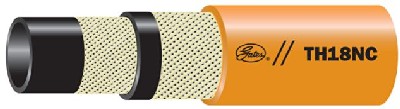

TH18NC Constant Pressure Non Conductive Hydraulic Hose - SAE 100R18

Types:
Hydraulic Hose

Vendor: Gates

Application:

TH18NC hose meets or exceeds performance requirements of SAE 100R18 with a significantly tighter bend radius. Suitable for petroleum or synthetic-based hydraulic fluids in hydraulic systems. TH18NC non-conductive hoses are suitable for use in high-voltage applications. Remains highly flexible in cold weather conditions and is resistant to hydraulic fluids, high temperatures, aging and weathering.

Tube:

Polyester elastomer.

Reinforcement:

Two bands of synthetic fiber.

Cover:

Special Urethane, orange (industry–accepted color for non–conductive hose), non–perforated for applications requiring electrical non–conductivity. Meets SAE 100R18 Electrical Conductivity Test. Maximum leakage shall not exceed 50 microamperes when subjected to 75 kV/Ft. for five minutes.

Temperature:

-67°F to +212°F (-55°C to +100°C) continuous service for petroleum and synthetic oils. Maximum of +158°F (+70°C) for water-based fluids.

Couplings:

MegaCrimp® Couplings with TuffCoat™ plating.

Category:

Thermoplastic

Description	Product No.	Hose ID	Hose OD	Working Pressure	Min Burst Pressure	Min Bend Radius	Request Quote
		in.	in.	psi	psi	in.
4TH18NCXCTN	4467-0011	1/4	0.48	3,000	12,000	1.4	Request Quote
5TH18NCXCTN	4467-0012	5/16	0.56	3,000	12,000	1.8	Request Quote
6TH18NCXCTN	4467-0013	3/8	0.65	3,000	12,000	1.8	Request Quote
8TH18NCXCTN	4467-0014	1/2	0.89	3,000	12,000	2.8	Request Quote
10TH18NCXCTN	4467-0015	5/8	1.03	3,000	12,000	3.9	Request Quote
