Gates

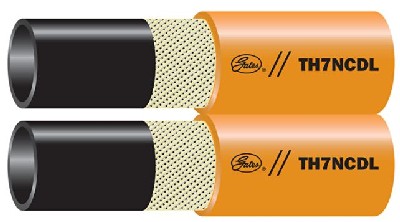

TH7NCDL Non Conductive Dual Line Hydraulic Hose - SAE 100R7

Types:
Hydraulic Hose

Vendor: Gates

Application:

Petroleum, water–base and synthetic hydraulic fluids. Applications include: power and telephone mobile equipment (cherry pickers), lubrication lines, blowout preventer control lines, hydraulic lifts and farm and construction machinery. Orange color TH7NCDL meets SAE 100R7 non–conductivity requirements and meets or exceeds performance requirements of SAE 100R7 with significantly tighter bend radius. Meets ANSI A92.2 for vehicle mounted aerial devices.

Note: This hose has replaced Gates C7SNCDL Hydraulic Hose SAE 100R7

Tube:

Nylon

Reinforcement:

Synthetic fiber.

Cover:

Orange Urethane that resists hydraulic fluids, high temperatures, aging and weathering. Orange TH7NCDL is non–perforated for applications requiring electrical non–conductivity. Meets SAE 100R7 Electrical Conductivity Test. Maximum leakage shall not exceed 50 microamperes when subjected to 75 kV/Ft. for five minutes. (Orange is industry accepted color for non–conductive hose.)

Temperature:

-65°F to +200°F (-54°C to +93°C) continuous service for petroleum and synthetic oils. Maximum of +158°F (+70°C) for water, water/oil emulsions and water glycol.

Couplings:

MegaCrimp® Couplings (G25) Section G

Category:

Thermoplastic

Part No.	Description	Product No.	ID	OD	WP	Burst Pressure	MBR	Request a Quote
85786	4TH7NCDL X50FT	4472-0226	1/4	0.5	2750	11000	1.5	Request Quote
71087	4TH7NCDLXCTN	4472-0225	1/4	0.5	2750	11000	1.5	Request Quote
85424	6TH7NCDL X50FT	4472-0228	3/8	0.64	2250	9000	2.75	Request Quote
71088	6TH7NCDLXCTN	4472-0227	3/8	0.64	2250	9000	2.75	Request Quote
71089	8TH7NCDLXCTN	4472-0229	1/2	0.8	2000	8000	3.75	Request Quote
