Gates

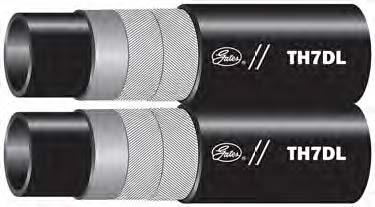

TH7DL DUAL LINE HYDRAULIC HOSE - SAE 100R7

Types:
Hydraulic Hose

Vendor: Gates

Application:

Petroleum, water–base and synthetic hydraulic fluids. Applications include: power and telephone mobile equipment (cherry pickers), lubrication lines, blowout preventer control lines, hydraulic lifts and farm and construction machinery. TH7DL hose meets or exceeds performance requirements of SAE 100R7 with significantly tighter bend radius.

Note: This hose has replaced Gates C7SDL Hydraulic Hose SAE 100R7 Hose

Tube:

100% seamless Nylon that easily handles a broad range of hydraulic fluids, including phosphate esters and water glycol.

Reinforcement:

Synthetic fiber.

Cover:

Black Urethane that resists hydraulic fluids, high temperatures, aging and weathering. Black TH7DL is perforated for use in general hydraulic and pneumatic service.

Temperature:

-65°F to +200°F (-54°C to +93°C) continuous service for petroleum and synthetic oils. Maximum of +158°F (+70°C) for water, water/oil emulsions and water glycol.

Couplings:

MegaCrimp® Couplings (G25) Section G

Category:

Thermoplastic

Part No.	Description	Product No.	ID	OD	WP	Burst Pressure	MBR	Request a Quote
71084	4TH7DLXCTN	4472-0220	1/4	0.5	2750	11000	1.5	Request Quote
85422	5TH7DL X50FT	4472-0222	5/16	0.56	2500	10000	2.25	Request Quote
71085	5TH7DLXCTN	4472-0221	5/16	0.56	2500	10000	2.25	Request Quote
71022	6TH7DLXCTN	4472-0223	3/8	0.64	2250	9000	2.75	Request Quote
71086	8TH7DLXCTN	4472-0224	1/2	0.8	2000	8000	3.75	Request Quote
