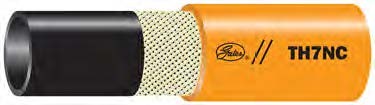

TH7NC Non Conductive Hydraulic Hose - SAE 100R7

Types:
Hydraulic Hose

Vendor: Gates

Application:

Petroleum and synthetic hydraulic fluids. Applications include: power and telephone mobile equipment (cherry pickers), lubrication lines, blowout preventer control lines, hydraulic lifts and farm and construction machinery. Orange color TH7NC meets SAE 100R7 non–conductivity requirements and meets or exceeds performance requirements of SAE 100R7 with a significantly tighter bend radius. Meets ANSI A92.2 for vehicle mounted aerial devices.

Note: This hose has replaced Gates C7SNC Hydraulic Hose SAE 100R7 Hose

Tube:

–2, –12, and –16: 100% seamless Nylon that easily handles a broad range of hydraulic fluids, including phosphate esters and water glycol; –3 through –8 Polyester.

Reinforcement:

Synthetic fiber and Nylon (–2 only).

Cover:

Orange Urethane that resists hydraulic fluids, high temperatures, aging and weathering. Orange TH7NC is non–perforated for applications requiring electrical non–conductivity. Meets SAE 100R7 Electrical Conductivity Test. Maximum leakage shall not exceed 50 microamperes when subjected to 75 kV/Ft. for five minutes. (Orange is industry accepted color for non–conductive hose).

Temperature:

-65°F to +200°F (-54°C to +93°C) continuous service for petroleum and synthetic oils. Maximum of +158°F (+70°C) for water, water/oil emulsions and water glycol.

Couplings:

MegaCrimp® Couplings (G25) Section G
Swage PCTS Couplings (–2 and –3) (G51) Section O

Category:

Thermoplastic

Part No.	Description	Product No.	ID	OD	WP	Burst Pressure	MBR	Request a Quote
71072	2TH7NCXCTN	4467-1166	1/8	0.32	3000	12000	0.50	Request Quote
85408	3TH7NC X50FT	4467-1205	3/16	0.41	3000	12000	0.75	Request Quote
71073	3TH7NCXCTN	4467-1167	3/16	0.41	3000	12000	0.80	Request Quote
85409	4TH7NC X50FT	4467-1170	1/4	0.50	2750	11000	1.5	Request Quote
71016	4TH7NCXCTN	4467-1169	1/4	0.50	2750	11000	1.5	Request Quote
85410	5TH7NC X50FT	4467-1172	5/16	0.56	2500	10000	2.25	Request Quote
71074	5TH7NCXCTN	4467-1171	5/16	0.56	2500	10000	2.25	Request Quote
85411	6TH7NC X50FT	4467-1174	3/8	0.64	2250	9000	2.75	Request Quote
71017	6TH7NCXCTN	4467-1173	3/8	0.64	2250	9000	2.75	Request Quote
85412	8TH7NC X50FT	4467-1206	1/2	0.80	2000	8000	3.75	Request Quote
71018	8TH7NCXCTN	4467-1175	1/2	0.80	2000	8000	3.75	Request Quote
85413	12TH7NC X50FT	4467-1200	3/4	1.05	1250	5000	5.0	Request Quote
71075	12TH7NCXCTN	4467-1177	3/4	1.05	1250	5000	5.0	Request Quote
85414	16TH7NC X50FT	4467-1199	1	1.32	1000	4000	6.5	Request Quote
71076	16TH7NCXCTN	4467-1198	1	1.32	1000	4000	6.5	Request Quote
