Gates

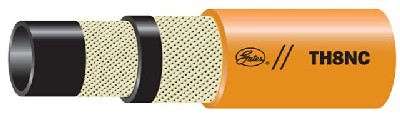

TH8NC NON CONDUCTIVE HYDRAULIC HOSE - SAE 100R8

Types:
Hydraulic Hose

Vendor: Gates

Application:

Use with petroleum, water base and synthetic hydraulic fluids. Applications include: power and telephone mobile equipment (cherry pickers), lubrication lines, blowout preventer control lines, hydraulic lifts and farm and construction machinery. TH8NC hose (orange cover) meets SAE 100R8 non–conductivity requirements. TH8NC hose meets or exceeds performance requirements of SAE 100R8 with a significantly tighter bend radius. Multiline available.

Note: This hose has replaced Gates GT8NC Hydraulic Hose SAE 100R8

Tube:

100% seamless Nylon that easily handles a broad range of hydraulic fluids, including phosphate esters and water glycol.

Reinforcement:

Polyester.

Cover:

Orange Urethane resists hydraulic fluids, high temperatures, aging and weathering. TH8NC is non–perforated for applications requiring electrical non–conductivity. Meets SAE 100R8 Electrical Conductivity Test. Maximum leakage shall not exceed 50 microamperes when subjected to 75 kV/Ft. for five minutes. (Orange is industry accepted color for non–conductive hose).

Temperature:

-65°F to +200°F (-54°C to +93°C) continuous service for petroleum and synthetic oils. Maximum of +158°F (+70°C) for water, water/oil emulsions and water glycol.

Couplings:

MegaCrimp® Couplings (G25) Section G

Category:

Thermoplastic

Part No.	Description	Product No.	ID	OD	WP	Burst Pressure	MBR	Request a Quote
85419	4TH8NC X50FT	4467-1187	1/4	0.61	5000	20000	2	Request Quote
71020	4TH8NCXCTN	4467-1186	1/4	0.61	5000	20000	2	Request Quote
85420	6TH8NC X50FT	4467-1203	3/8	0.75	4000	16000	2.5	Request Quote
71082	6TH8NCXCTN	4467-1204	3/8	0.75	4000	16000	2.5	Request Quote
85421	8TH8NC X50FT	4467-1190	1/2	0.87	3500	14000	4	Request Quote
71083	8TH8NCXCTN	4467-1189	1/2	0.87	3500	14000	4	Request Quote
