Gates

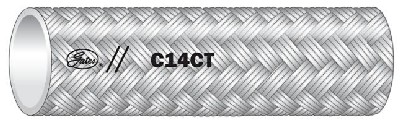

C14CT PTFE Hose - SAE 100R14 Type B - Conductive
Types:
Hydraulic Hose
Vendor: Gates
Application:
Air compressor discharge, hot oil and fluids, hot and greasy environments.Tube:
Type B-Conductive black/white, smooth bore PTFE.
Reinforcement:
One braid of 300 Series stainless steel wire. 304 Stainless.
Cover:
One braid of 300 Series stainless steel wire. 304 Stainless.
Temperature:
-65°F to +400°F (-54°C to +204°C). Static: -65°F to +450°F (-54°C to +232°C).
Branding:
C14CT
Couplings:
Brass and Stainless Steel available.
C14 Couplings (G40) Section L
| Part No. | Description | Product No. | ID | OD | WP | Burst Pressure | MBR | WP | Burst Pressure | WP | Burst Pressure | Request a Quote |
| (72ºF) | (72ºF) | (450ºF) | (450ºF) | |||||||||
| 85730 | 6C14CT X25FT | 7752-3625 | 5/16 | 0.45 | 1500 | 6000 | 4 | 2500 | 10000 | 1500 | 6000 | Request Quote |
| 70906 | 6C14CTXCTN* | 7752-3600 | 5/16 | 0.45 | 1500 | 6000 | 4 | 2500 | 10000 | 1500 | 6000 | Request Quote |
| 85731 | 8C14CT X25FT | 7752-3825 | 13/32 | 0.55 | 1000 | 4000 | 5.3 | 2000 | 8000 | 1000 | 4000 | Request Quote |
| 70908 | 8C14CTXCTN* | 7752-3800 | 13/32 | 0.55 | 1000 | 4000 | 5.3 | 2000 | 8000 | 1000 | 4000 | Request Quote |
NOTE: Electrostatic Discharge: Many applications involving PTFE hose do not require a conductive tube. But you must review the potential for electrostatic
discharge for every application and be aware that static electricity can be hazardous. In those cases where electrostatic discharge can occur, conductive PTFE
hose with a conductive tube (Gates C14CT) is recommended.
 |
