Gates

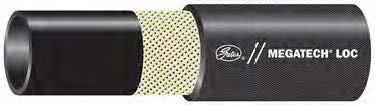

MegaTech LOC 1-Fiber Braid High-Temp Lock-On Hose

Types:
Hydraulic Hose

Vendor: Gates

Application:

High-temperature (300°F) transmission oil cooler lines, pressurized hot oil return lines and turbocharger oil supply lines. Not recommended for gasoline or diesel fuel applications.

Tube:

True–bore black tube specifically compounded for temperature and chemical resistance (CPE).

Reinforcement:

One fiber braid.

Cover:

Oil and mildew resistant, textile braid, impregnated with synthetic rubber.

Temperature:

-40°F to +300°F (-40°C to +149°C).

Couplings:

Field Attachable LOC Couplings (G36) Section AC
MegaCrimp® Couplings (–16) (G25) Section G

Category:

Low Pressure

Description	Product No.	Hose ID	Hose OD	Working Pressure	Min Burst Pressure	Min Bend Radius	Request Quote
		in.	in.	psi	psi	in.
4MEGATECHLOCXREEL	4319-0106	1/4	0.50	300	1,200	3.0	Request Quote
6MEGATECHLOCXREEL	4319-0107	3/8	0.64	300	1,200	3.0	Request Quote
8MEGATECHLOCXREEL	4319-0108	1/2	0.78	300	1,200	5.0	Request Quote
10MEGATECHLOCXREEL	4319-0109	1/2	0.91	300	1,200	6.0	Request Quote
12MEGATECHLOCXREEL	4319-0110	3/4	1.08	300	1,200	7.0	Request Quote
16MEGATECHLOCXREEL	4319-0111	1	1.33	300	1,200	7.0	Request Quote
