Gates

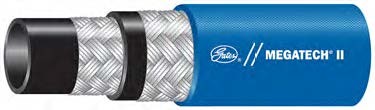

MEGATECH® II - SAE 100R2 TYPE AT - ACP

Types:
Hydraulic Hose

Vendor: Gates

Application:

Multi–purpose high–pressure, high–temperature, air compressor lines, petroleum–base or phosphate ester hydraulic fluid supply lines. Meets or exceeds the requirements of SAE 100R2.

Tube:

Black, oil resistant, synthetic rubber (CPE).

Reinforcement:

Two braids of high-tensile steel wire.

Cover:

Blue, oil and abrasion resistant, polyester braid.

Temperature:

-40°F to +300°F (-40°C to +149°C).

Couplings:

GlobalSpiral™ Plus Couplings (–24 and –32) (G22) Section E
MegaCrimp® Couplings (–20) (G25) Section G
Stainless Steel Braid Couplings (–24 and –32) (G17) Section H

Category:

High Pressure

Colors:

Blue

Part No.	Description	Product No.	ID	OD	Working Pressure (psi)	Min. Burst Pressure (psi)	Min. Bend Radius (in)	Request a Quote
70975	20ACP MEGATECHIIXCTN	4657-8018	1 1/4	1.89	2250	9000	15	Request Quote
70858	24ACP MEGATECHIIXCTN	4657-2484	1 1/2	2.13	1500	6000	20	Request Quote
70802	32ACP MEGATECHII XCTN50	4657-4734	2	2.61	1300	5200	25	Request Quote
70859	32ACP MEGATECHIIXCTN	4657-2485	2	2.61	1300	5200	25	Request Quote
