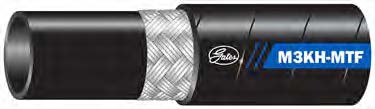

GLOBAL M3KH MEGA3000® HOSE - HIGH-TEMP - SAE 100R17 - MEGATUFF® COVER

Types:
Hydraulic Hose

Vendor: Gates

Application:

Elevated temperature high–pressure hydraulic oil lines. Exceeds ISO 18752 Grade C, SAE 100R17 and ISO 11237 R17 working pressure, minimum bend radius requirements and performance requirements of EN 857 1SC. M3KH hose has smaller exterior dimensions and significantly tighter bend radius than other SAE 100R1 and 100R2 hose.

Meets Flame Resistance Acceptance Designation "MSHA 2G" and ISO 11237 R17. MegaTuff® hose lasts up to 300 times longer than standard hose during hose–to–hose and hose–to–metal abrasion tests per ISO 6945. Tested to Industry Leading 600,000 impulse cycles.

Tube:

Black, oil resistant, synthetic rubber (Nitrile).

Reinforcement:

Braided, high–tensile steel wire. –4, –6 and –8 sizes are one braid; –10, –12 and –16 sizes are two braid.

Cover:

Black, oil, abrasion and weather resistant MegaTuff® cover with color coded layline. Also available in Standard cover.

Temperature:

-40°F to +250°F (-40°C to +121°C)

Couplings:

GlobalSpiral™ Couplings (–6 through –16) (G20) Section E
MegaCrimp® Couplings (G25) Section G

Category:

High Pressure

Part No.	Description	Product No.	Standard Pack	ID	OD	Working Pressure (psi)	Min. Burst Pressure (psi)	Min. Bend Radius (in)	Request a Quote
71030	4M3KH-MTFXREEL	4657-2321	440	1/4	0.48	3250	13000	2	Request Quote
71031	6M3KH-MTFXREEL	4657-2323	330	3/8	0.63	3250	13000	2.5	Request Quote
71032	8M3KH-MTFXREEL	4657-2324	330	1/2	0.8	3250	13000	3.5	Request Quote
71033	10M3KH-MTFXREEL	4657-2325	220	5/8	0.99	3250	13000	4	Request Quote
71034	12M3KH-MTFXREEL	4657-2326	220	3/4	1.15	3250	13000	4.8	Request Quote
71035	16M3KH-MTFXREEL	4657-2327	165	1	1.48	3250	13000	6	Request Quote
