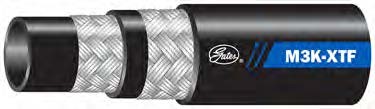

GLOBAL M3K MEGA3000® HOSE - SAE 100R17 - XTRATUFF® COVER
Types:
Hydraulic Hose
Vendor: Gates
Application:
High–pressure hydraulic oil lines. Exceeds ISO 18752 Grade B, SAE 100R17 and ISO 11237 R17 working pressure, minimum bend radius requirements and performance requirements of EN 857 1SC. M3K hose has smaller exterior dimensions and significantly tighter bend radius than other SAE 100R1 and 100R2 hose.Meets Flame Resistance Acceptance Designation "MSHA 2G" and ISO 11237 R17. Tested to Industry Leading 600,000 impulse cycles. XtraTuff® hose lasts up to 25 times longer than standard hose during hose–to–hose and hose–to–metal abrasion tests per ISO 6945.
Tube:
Black, oil resistant, synthetic rubber (Nitrile).
Reinforcement:
Braided, high–tensile steel wire. –4, –5, –6 and –8 sizes are one braid; –10, –12 and –16 sizes are two braid.
Cover:
Black, oil, abrasion and weather resistant, synthetic rubber (XtraTuff® Nitrile), with color coded layline. Also available with unique abrasion resistant MegaTuff® or Standard covers.
Temperature:
-40°F to +212°F (-40°C to +100°C)
Couplings:
GlobalSpiral™ Couplings (–6 through –16) (G20) Section E
MegaCrimp® Couplings (G25) Section G
Power Crimp® Couplings (–3) Section I
Stainless Steel Braid Couplings (G17) Section H
Category:
High Pressure
| Part No. | Description | Product No. | Standard Pack | ID | OD | Working Pressure (psi) | Min. Burst Pressure (psi) | Min. Bend Radius (in) | Request a Quote |
| 70969 | 3M3K-XTFXREEL | 4657-8069 | 440 | 3/16 | 0.43 | 3250 | 13000 | 1.3 | Request Quote |
| 4M3K-XTFXBALE | 4657-2434 | 5600 | 1/4 | 0.48 | 3250 | 13000 | 1.5 | Request Quote | |
| 70569 | 4M3K-XTFXREEL | 4657-1097 | 440 | 1/4 | 0.48 | 3250 | 13000 | 1.5 | Request Quote |
| 5M3K-XTFXBALE | 4657-2628 | 4400 | 5/16 | 0.6 | 3250 | 13000 | 1.8 | Request Quote | |
| 6M3K-XTFXBALE | 4657-2627 | 4800 | 3/8 | 0.63 | 3250 | 13000 | 2 | Request Quote | |
| 70570 | 6M3K-XTFXREEL | 4657-1098 | 330 | 3/8 | 0.63 | 3250 | 13000 | 2 | Request Quote |
| 8M3K-XTFXBALE | 4657-1099 | 2500 | 1/2 | 0.8 | 3250 | 13000 | 2.8 | Request Quote | |
| 70571 | 8M3K-XTFXREEL | 4657-2248 | 220 | 1/2 | 0.8 | 3250 | 13000 | 2.8 | Request Quote |
| 70572 | 10M3K-XTFXREEL | 4657-2249 | 220 | 5/8 | 0.99 | 3250 | 13000 | 3 | Request Quote |
| 70573 | 12M3K-XTFXREEL | 4657-2250 | 220 | 3/4 | 1.15 | 3250 | 13000 | 3.8 | Request Quote |
| 70574 | 16M3K-XTFXREEL | 4657-2307 | 165 | 1 | 1.48 | 3250 | 13000 | 4.5 | Request Quote |
 |
