Gates

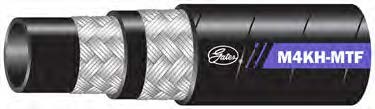

GLOBAL M4KH MEGA4000™ HOSE - HIGH-TEMP - SAE 100R19 - MEGATUFF® COVER

Types:
Hydraulic Hose

Vendor: Gates

Application:

High–pressure hydraulic applications at elevated temperatures. Exceeds ISO 18752 Grade C, SAE 100R19 and ISO 11237 R19. Allows for tighter minimum bend radius, increased working pressure and improved impulse cycles than industry standards. Provides greater performance, flexibility, easier routing and plumbing of mobile and stationary hydraulic platforms.

Meets Flame Resistance Acceptance Designation "MSHA 2G" and ISO 11237 R19. MegaTuff® hose lasts up to 300 times longer than standard hose during hose–to–hose and hose–to–metal abrasion tests per ISO 6945. Tested to Industry Leading 600,000 impulse cycles.

Tube:

Black, oil resistant, synthetic rubber (Nitrile).

Reinforcement:

Two braids of high-tensile steel wire.

Cover:

Black, oil, abrasion and weather resistant MegaTuff® cover with color coded layline. Also available in Standard cover.

Temperature:

-40°F to +250°F (-40°C to +121°C)

Couplings:

GlobalSpiral™ Couplings (–6 through –12) (G20) Section E
MegaCrimp® Couplings (G25) Section G

Category:

High Pressure

Part No.	Description	Product No.	Standard Pack	ID	OD	Working Pressure (psi)	Min. Burst Pressure (psi)	Min. Bend Radius (in)	Request a Quote
85448	4M4KH-MTF X50FT	4657-4093	1	1/4	0.55	4000	16000	2	Request Quote
70956	4M4KH-MTFXREEL	4657-2157	440	1/4	0.55	4000	16000	2	Request Quote
85449	6M4KH-MTF X50FT	4657-4094	1	3/8	0.7	4000	16000	2.5	Request Quote
70957	6M4KH-MTFXREEL	4657-2159	330	3/8	0.7	4000	16000	2.5	Request Quote
85450	8M4KH-MTF X50FT	4657-4095	1	1/2	0.82	4000	16000	3.5	Request Quote
70958	8M4KH-MTFXREEL	4657-2160	220	1/2	0.82	4000	16000	3.5	Request Quote
85451	10M4KH-MTF X50FT	4657-4096	1	5/8	0.99	4000	16000	4	Request Quote
70959	10M4KH-MTFXREEL	4657-2161	220	5/8	0.99	4000	16000	4	Request Quote
85452	12M4KH-MTF X50FT	4657-4097	1	3/4	1.17	4000	16000	4.7	Request Quote
70973	12M4KH-MTFXREEL	4657-2396	190	3/4	1.17	4000	16000	4.7	Request Quote
