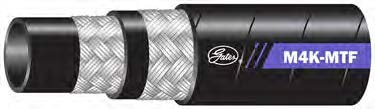

GLOBAL M4K MEGA4000™ HOSE - SAE 100R19 - MEGATUFF® COVER
Types:
Hydraulic Hose
Vendor: Gates
Application:
High–pressure hydraulic applications. Exceeds ISO 18752 Grade B, SAE 100R19 and ISO 11237 R19. Allows for tighter minimum bend radius, increased working pressure and improved impulse cycles than industry standards. Provides greater performance, flexibility, easier routing and plumbing of mobile and stationary hydraulic platforms.Meets Flame Resistance Acceptance Designation "MSHA 2G" and ISO 11237 R19. MegaTuff® hose lasts up to 300 times longer than standard hose during hose–to–hose and hose–to–metal abrasion tests per ISO 6945. Tested to Industry Leading 600,000 impulse cycles.
Tube:
Black, oil resistant, synthetic rubber (Nitrile).
Reinforcement:
Two braids of high-tensile steel wire.
Cover:
Black, oil, abrasion and weather resistant MegaTuff® cover with color coded layline. Also available with unique abrasion resistant XtraTuff® or Standard covers.
Temperature:
-40°F to +212°F (-40°C to +100°C)
Couplings:
GlobalSpiral™ Couplings (–6 through –16) (G20) Section E
MegaCrimp® Couplings (–4 through –12) (G25) Section G
Stainless Steel Braid Couplings (–4 through –8) (G17) Section H
Stainless Steel Spiral Couplings (–12 and –16) (G18) Section F
Category:
High Pressure
| Part No. | Description | Product No. | Standard Pack | ID | OD | Working Pressure (psi) | Min. Burst Pressure (psi) | Min. Bend Radius (in) | Request a Quote |
| 85519 | 4M4K-MTF X50FT | 4657-1239 | 1 | 1/4 | 0.55 | 4000 | 16000 | 1.5 | Request Quote |
| 70830 | 4M4K-MTFXREEL | 4657-1477 | 350 | 1/4 | 0.55 | 4000 | 16000 | 1.5 | Request Quote |
| 70326 | 5M4K-MTFXREEL | 4657-8017 | 350 | 5/16 | 0.61 | 4000 | 16000 | 1.8 | Request Quote |
| 85520 | 6M4K-MTF X50FT | 4657-4020 | 1 | 3/8 | 0.7 | 4000 | 16000 | 2 | Request Quote |
| 70825 | 6M4K-MTFXREEL | 4657-1479 | 330 | 3/8 | 0.7 | 4000 | 16000 | 2 | Request Quote |
| 85521 | 8M4K-MTF X50FT | 4657-4021 | 1 | 1/2 | 0.82 | 4000 | 16000 | 2.8 | Request Quote |
| 8M4K-MTFXBALE | 4657-5016 | 3200 | 1/2 | 0.82 | 4000 | 16000 | 2.8 | Request Quote | |
| 70826 | 8M4K-MTFXREEL | 4657-1480 | 220 | 1/2 | 0.82 | 4000 | 16000 | 2.8 | Request Quote |
| 85522 | 10M4K-MTF X50FT | 4657-4022 | 1 | 5/8 | 0.99 | 4000 | 16000 | 3 | Request Quote |
| 70827 | 10M4K-MTFXREEL | 4657-1481 | 220 | 5/8 | 0.99 | 4000 | 16000 | 3 | Request Quote |
| 85524 | 12M4K-MTF X50FT | 4657-4024 | 1 | 3/4 | 1.17 | 4000 | 16000 | 3.8 | Request Quote |
| 70828 | 12M4K-MTFXREEL | 4657-1482 | 190 | 3/4 | 1.17 | 4000 | 16000 | 3.8 | Request Quote |
| 71103 | 16M4K-MTFXREEL | 4657-4053 | 165 | 1 | 1.52 | 4000 | 16000 | 4.5 | Request Quote |
 |
