Gates

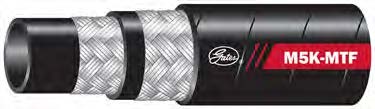

GLOBAL M5K MEGA5000™ HOSE - MEGATUFF® COVER

Types:
Hydraulic Hose

Vendor: Gates

Application:

High–pressure hydraulic applications. Exceeds ISO 18752 Grade B. Provides tighter than standard minimum bend radius and greater flexibility for easier plumbing.

Meets Flame Resistance Acceptance Designation "MSHA 2G". Tested to Industry Leading 600,000 impulse cycles.

Tube:

Black, oil resistant, synthetic rubber (Nitrile).

Reinforcement:

Two braids of high–tensile steel wire.

Cover:

Black, oil, abrasion and weather resistant MegaTuff® cover with color coded layline. Also available with unique abrasion resistant XtraTuff® or Standard covers.

Temperature:

-40°F to +212°F (-40°C to +100°C)

Branding:

Gates® M5K

Couplings:

GlobalSpiral™ Couplings (–6 and –8) (G20) Section E
MegaCrimp® Couplings (G25) Section G
Stainless Steel Braid Couplings (G17) Section H

Category:

High Pressure

Colors:

Black

Description	Product No.	Hose ID	Hose OD	Working Pressure	Min Burst Pressure	Min Bend Radius	Request Quote
		in.	in.	psi	psi	in.
4M5KMTFXREEL	4657-8011	1/4	0.55	5,000	20000	2.0	Request Quote
5M5KMTFXREEL	4657-8012	5/16	0.81	5,000	20000	2.2	Request Quote
6M5KMTFXREEL	4657-8013	3/8	0.70	5,000	20000	2.5	Request Quote
8M5KMTFXREEL	4657-8014	1/2	0.86	5,000	20000	3.5	Request Quote
