Gates

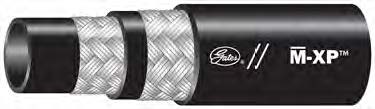

M-XP Million Impulse Xtra Performance Wire Braid Hose

Types:
Hydraulic Hose

Vendor: Gates

Application:

High-pressure, high impulse life hydraulic applications.
Provides tighter than standard minimum bend radius and greater flexibility for easier plumbing.

Meets Flame Resistance Acceptance Designation "MSHA 2G". Tested to Industry Leading 1,000,000 impulse cycles.

Tube:

Black, oil resistant, synthetic rubber (Nitrile).

Reinforcement:

Two braids of high-tensile steel wire.

Cover:

Black, oil, abrasion and weather resistant, synthetic rubber (Nitrile and PVC –4 and –6), (Polychloroprene –8 through –12).

Temperature:

-40°F to +212°F (-40°C to +100°C)

Couplings:

GlobalSpiral Couplings, MegaCrimp Couplings.

Category:

High Pressure

Description	Product No.	Hose ID	Hose OD	Working Pressure	Min Burst Pressure	Min Bend Radius	Request Quote
		in.	in.	psi	psi	in.
4M-XPXREEL	4657-4216	1/4	0.55	4,000	16000	2.0	Request Quote
6M-XPXREEL	4657-4217	3/8	0.70	4,000	16000	2.5	Request Quote
8M-XPXREEL	4657-4218	1/2	0.82	4,000	16000	3.5	Request Quote
10M-XPXREEL	4657-4219	5/8	0.96	4,000	16000	4.0	Request Quote
12M-XPXREEL	4657-4220	3/4	1.17	4,000	16000	4.7	Request Quote
