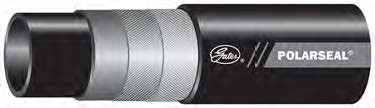

Gates
PolarSeal Hose
Types:
Hydraulic Hose
Vendor: Gates
Application:
Liquid and gaseous R134a and R12 refrigerants in automotive air conditioning and industrial systems; i.e., tractors construction trucks, mobile and stationary refrigeration units. Designed to minimize permeation of R134a refrigerant. Air conditioning refrigerant hose is manufactured in accordance with SAE J3062, while air conditioning hose assemblies must meet SAE J2064.PolarSeal® (ACA) full dimension barrier hose. SAE J51, Type A2 Dimensions; SAE J51, Type D Performance; SAE J3062, Type C, Class II Performance.
Barrier
Nylon linerTube:
Black, synthetic rubber (Polychloroprene).
Reinforcement:
Two layers of spiral polyester.
Cover:
Black synthetic rubber (EPDM).
Temperature:
-22°F to +257°F (-30°C to +125°C).
Branding:
Gates® PolarSeal
Couplings:
PolarSeal® Couplings (ACA) (G45) Section P
Category:
Refrigerant
Part No. | Description | Product No. | Standard Pack | ID | OD | Working Pressure | Min. Burst Pressure | MBR | Vacuum | Request a Quote |
85664 | 6AC134A X25FT | 3353-0901 | 1 | 5/16 | 0.75 | 500 | 2000 | 2.0 | 24 | Request Quote |
70624 | 6AC134AXREEL | 3353-0903 | 340 | 5/16 | 0.75 | 500 | 2000 | 2.0 | 24 | Request Quote |
85665 | 8AC134A X25FT | 3353-0906 | 1 | 13/32 | 0.91 | 500 | 2000 | 3.0 | 24 | Request Quote |
70625 | 8AC134AXREEL | 3353-0908 | 235 | 13/32 | 0.91 | 500 | 2000 | 3.0 | 24 | Request Quote |
85666 | 10AC134A X25FT | 3353-0911 | 1 | 1/2 | 1.00 | 500 | 2000 | 4.0 | 24 | Request Quote |
70626 | 10AC134AXREEL | 3353-0913 | 210 | 1/2 | 1.00 | 500 | 2000 | 4.0 | 24 | Request Quote |
85667 | 12AC134A X25FT | 3353-0916 | 1 | 5/8 | 1.13 | 500 | 2000 | 5.0 | 24 | Request Quote |
70627 | 12AC134AXREEL | 3353-0918 | 175 | 5/8 | 1.13 | 500 | 2000 | 5.0 | 24 | Request Quote |
