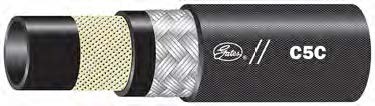

C5C Hydraulic Hose - SAE 100R5

Types:
Hydraulic Hose

Vendor: Gates

Application:

Medium–pressure hydraulic petroleum–based oil lines in impulse applications, lube oil, air and water in applications such as air brakes, power steering (CAUTION: Intended for heavy–duty commercial vehicle use only), turbocharger oil supplies, tilt cab cylinders, transmission coolant and filtration lines. Meets or exceeds requirements of SAE 100R5 for traditional hydraulic applications, DOT FMVSS 106–74 Type AII and SAE J1402 Type AII for air brake applications (–4 to –12). Not recommended for gasoline or diesel fuel.

Tube:

Black, oil and heat–resistant synthetic rubber (Polychloroprene –4 and –5), (Nitrile –6 through –40).

Reinforcement:

One braid of high–tensile carbon steel wire over one braid of polyester.

Cover:

Black, oil and mildew resistant, polyester braid.

Temperature:

Under SAE 100R5 (hydraulic) conditions –40°F to +212°F (–40°C to +100°C). All–purpose fleet application (hot lube oil lines) –40°F to +300°F (–40°C to +149°C). Air to +160°F (+71°C) only. Avoid continuous use at maximum temperature concurrent with maximum working pressures.

Couplings:

Contact JGB for proper fitting recommendation and coupling procedure.

Part No.	Description	Product No.	Standard Pack	Hose ID	Hose OD	WP	Min. Burst	MBR	Request a Quote
				In.	In.	psi	psi	In.
86605	4C5C X50FT	3658-1762	1	3/16	0.52	3000	12000	3	Request Quote
70589	4C5CXREEL	3658-1775	440	3/16	0.52	3000	12000	3	Request Quote
86606	5C5C X50FT	3658-1763	1	1/4	0.58	3000	12000	3.4	Request Quote
70590	5C5CXREEL	3658-1776	385	1/4	0.58	3000	12000	3.4	Request Quote
86607	6C5C X50FT	3658-1764	1	5/16	0.67	2250	9000	4	Request Quote
70591	6C5CXREEL	3658-1777	385	5/16	0.67	2250	9000	4	Request Quote
86608	8C5C X50FT	3658-1765	1	13/32	0.77	2000	8000	4.6	Request Quote
70592	8C5CXREEL	3658-1778	330	13/32	0.77	2000	8000	4.6	Request Quote
86609	10C5C X50FT	3658-1766	1	1/2	0.92	1750	7000	5.5	Request Quote
70593	10C5CXREEL	3658-1779	275	1/2	0.92	1750	7000	5.5	Request Quote
86610	12C5C X50FT	3658-1767	1	5/8	1.08	1500	6000	6.5	Request Quote
70594	12C5CXREEL	3658-1780	220	5/8	1.08	1500	6000	6.5	Request Quote
86616	16C5C X50FT	3658-1768	1	7/8	1.23	800	3200	7.4	Request Quote
70595	16C5CXREEL	3658-1781	165	7/8	1.23	800	3200	7.4	Request Quote
86617	20C5C X25FT	3658-1772	1	1 1/8	1.5	625	2500	9	Request Quote
70096	20C5CXCTN	3658-1758	100	1 1/8	1.5	625	2500	9	Request Quote
70097	24C5CXCTN	3658-1759	100	1 3/8	1.75	500	2000	10.5	Request Quote
70098	32C5CXCTN	3658-1760	100	1 13/16	2.22	350	1400	13.3	Request Quote
70099	40C5CXCTN	3658-1761	50	2 3/8	2.88	350	1400	24	Request Quote
