Gates

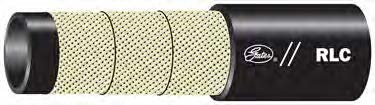

RLC 3-Fiber Braid Return Line and Low Pressure Hose

Types:
Hydraulic Hose

Vendor: Gates

Application:

Petroleum-base hydraulic oils, glycol antifreeze, air or water in low pressure fluid transfer or hydraulic system return lines. Generally connected to 100R4 stems, beaded nipples, or tube type ports with worm gear clamps.

Tube:

Black, oil resistant, synthetic rubber (Nitrile).

Reinforcement:

Three fiber braids.

Cover:

Black, oil and abrasion resistant, synthetic rubber (Nitrile and PVC).

Temperature:

For hydraulic oil lines –40°F to +275°F (–40°C to +135°C) constant and +300°F (+149°C) intermittent (up to 10% of operating time); air to +160°F (+71°C) only.

Part No.	Description	Product No.	Standard Pack	Hose ID	Hose OD	WP	Min. Burst	MBR	Vacuum	Request a Quote
				In.	In.	psi	psi	In.
70142	16RLCXCTN	3319-0261	50	1	1.62	200	800	9	25	Request Quote
70074	20RLCXCTN	3319-0263	50	1 1/4	1.88	200	800	10	25	Request Quote
70075	24RLCXCTN	3319-0264	100	1 1/2	2.12	200	800	11	25	Request Quote
70143	28RLCXCTN	3319-0265	50	1 3/4	2.38	200	800	12	25	Request Quote
70076	32RLCXCTN	3319-0266	60	2	2.56	200	800	13	25	Request Quote
70070	36RLCXCTN	3319-0267	50	2 1/4	2.87	150	600	14	25	Request Quote
70077	40RLCXCTN	3319-0268	50	2 1/2	3.12	150	600	16	25	Request Quote
70078	48RLCXCTN	3319-0270	50	3	3.62	150	600	20	25	Request Quote
70081	56RLCXCTN	3319-0272	50	3 1/2	4.12	150	600	24	25	Request Quote
70144	72RLC X10FT	3319-0273	10	4 1/2	5.19	100	400	54	25	Request Quote
