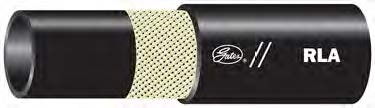

RLA 1-Fiber Braid Return Line and Low Pressure Hose

Types:
Hydraulic Hose

Vendor: Gates

Application:

Low-pressure hydraulic oil return lines for general purpose water, glycol antifreeze solutions, conveying diesel fuel, gasoline or air. Meets SAE 30R2 performance requirements of both Type 1 and Type 2 for fuel and B20 constant contact up to 125°F biodiesel fuel transfer applications.

Tube:

Black, oil resistant, synthetic rubber (Nitrile).

Reinforcement:

One fiber braid (-3 to -10). Spiral braid (-12 to -16).

Cover:

Black, synthetic rubber. Oil and abrasion resistant (Modified Nitrile and PVC).

Temperature:

-40°F to +212°F (-40°C to +100°C). Air to +160°F (+71°C) only.

Couplings:

Contact JGB for proper fitting recommendation and coupling procedure.

Part No.	Description	Product No.	Standard Pack	Hose ID	Hose OD	WP	Min. Burst	MBR	Vacuum	Request a Quote
				In.	In.	psi	psi	In.
85940	3RLA X25FT	3284-4028	1	3/16	0.41	250	1000	3	28	Request Quote
70040	3RLAXREEL	3284-0110	550	3/16	0.41	250	1000	3	28	Request Quote
85941	4RLA X25FT	3284-4029	1	1/4	0.5	250	1000	3	28	Request Quote
70041	4RLAXREEL	3284-0120	550	1/4	0.5	250	1000	3	28	Request Quote
85942	5RLA X25FT	3284-4030	1	5/16	0.56	250	1000	4	28	Request Quote
70042	5RLAXREEL	3284-0130	550	5/16	0.56	250	1000	4	28	Request Quote
85943	6RLA-30R2X25FT	3284-4031	1	3/8	0.66	250	1000	4	28	Request Quote
70043	6RLAXREEL	3284-0140	550	3/8	0.66	250	1000	4	28	Request Quote
85944	8RLA X25FT	3284-4032	1	1/2	0.81	200	800	5	20	Request Quote
70044	8RLAXREEL	3284-0150	550	1/2	0.81	200	800	5	20	Request Quote
85945	10RLA X25FT	3284-4033	1	5/8	0.94	200	800	6	15	Request Quote
70045	10RLAXREEL	3284-0160	550	5/8	0.94	200	800	6	15	Request Quote
85946	12RLA-30R2X25FT	3284-4088	1	3/4	1.09	200	800	6	10	Request Quote
70046	12RLA-30R2XREEL	3284-0170	650	3/4	1.09	200	800	6	10	Request Quote
85947	16RLA-30R2X25FT	3284-4181	1	1	1.34	160	640	8	10	Request Quote
70047	16RLA-30R2XREEL	3284-0180	400	1	1.34	160	640	8	10	Request Quote
