Gates

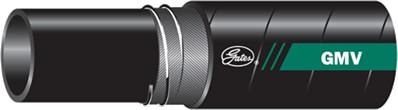

GMV Global MegaVac Return Line and Suction Hose - SAE 100R4

Types:
Hydraulic Hose

Vendor: Gates

Application:

Recommended for petroleum and water based hydraulic fluids in suction lines or in low pressure return lines.
Meets or exceeds requirements of SAE 100R4.

FEATURES AND BENEFITS

• Uses a helical spiral-wire to prevent hose collapse under suction.
• Meets marine ABS and DNV-GL with use of HeatGuard high temp sleeve.
• Meets Flame Resistance Acceptance Designation MSHA 2G.
• Standards: SAE 100R4.
• Cover: MSHA approved.

Tube:

Black, synthetic rubber is specifically designed for resistance to high temperatures (Nitrile - Type C).

Reinforcement:

Double spiral textile (braid for -12, -16 and -20) reinforced with a helical spiral-wire to prevent collapse.

Cover:

Black synthetic rubber is oil and abrasion resistant (Neoprene - Type A).

Temperature:

-40°F to +275°F (-40°C to +135°C) constant and +300°F (+149°C) intermittent (up to 10% of operating time).

Couplings:

Contact JGB for proper fitting recommendation and coupling procedure.

Part #	Product #	Description	Maximum Working Pressure (psi)	Hose Inside Diameter (in)	Hose Outside Diameter (in)	Minimum Bend Radius (in)	Weight Per ft	Request a Quote
85577 / 12GMV X25FT	45040961	85577 12GMV X25FT	350	0.75	1.22	2.5	11.22	Request Quote
85578 / 16GMV X25FT	45040962	85578 16GMV X25FT	300	1	1.45	3	13.52	Request Quote
85579 / 20GMV X25FT	45040963	85579 20GMV X25FT	250	1.25	1.76	4	19.17	Request Quote
