Gates

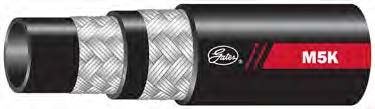

GLOBAL M5K MEGA5000™ HOSE

Types:
Hydraulic Hose

Vendor: Gates

Application:

High–pressure hydraulic applications. Exceeds ISO 18752 Grade B. Provides tighter than standard minimum bend radius and greater flexibility for easier plumbing.

Meets Flame Resistance Acceptance Designation "MSHA 2G". Tested to Industry Leading 600,000 impulse cycles.

Tube:

Black, oil resistant, synthetic rubber (Nitrile).

Reinforcement:

Two braids of high-tensile steel wire.

Cover:

Black, oil, abrasion and weather resistant, synthetic rubber (Nitrile and PVC –4, –5, –6), (Polychloroprene –8) with color coded layline. Also available with unique abrasion resistant MegaTuff® or XtraTuff® covers.

Temperature:

-40°F to +212°F (-40°C to +100°C)

Couplings:

Contact JGB for proper fitting recommendation and coupling procedure.

Part No.	Description	Product No.	Standard Pack	Hose ID	Hose OD	WP	Min. Burst	MBR	Request a Quote
				In.	In.	psi	psi	In.
85607	4M5K X50FT	4657-4122	1	1/4	0.55	5000	20000	2	Request Quote
70596	4M5KXREEL	4657-1100	440	1/4	0.55	5000	20000	2	Request Quote
70449	5M5KXREEL	4657-8006	350	5/16	0.61	5000	20000	2.2	Request Quote
85606	6M5K X50FT	4657-4121	1	3/8	0.7	5000	20000	2.5	Request Quote
70597	6M5KXREEL	4657-2695	330	3/8	0.7	5000	20000	2.5	Request Quote
85608	8M5K X50FT	4657-4123	1	1/2	0.86	5000	20000	3.5	Request Quote
70598	8M5KXREEL	4657-2650	220	1/2	0.86	5000	20000	3.5	Request Quote
