Gates

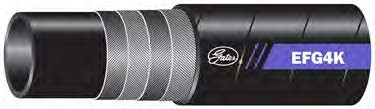

EFG4K Spiral Wire Hose - SAE 100R12

EFG4K Spiral Wire Hose - SAE 100R12

Types:
Hydraulic Hose


Vendor: Gates

Application:

For Biodegradable Hydraulic Fluids. Meets Flame Resistance Acceptance Designation "MSHA 2G". Tested to Industry Leading 1,000,000 impulse cycles.

Very high–pressure, high–impulse applications. Exceeds all requirements of ISO 18752 Grade D*, SAE 100R12, EN 856 R12 and ISO 3862 Type R12. *(Sizes 3/8", 1/2" and 5/8" exceed ISO 18752 Grade D performance but does not meet OD requirements). Compatible with biodegradable hydraulic fluids like polyolester, polyglycol and vegetable oil as well as standard petroleum–based fluids. Available in 121' through 200' continuous lengths.

Tube:

Black, oil resistant, synthetic rubber (Nitrile).

Reinforcement:

Four alternating layers of spiraled, high tensile steel wire.

Cover:

Black, oil resistant, synthetic rubber (Polychloroprene), with color coded layline. Also available with unique abrasion resistant MegaTuff® or XtraTuff® covers.

Temperature:

-40°F to +250°F (-40°C to +121°C)

Couplings:

Contact JGB for proper fitting recommendation and coupling procedure.

Lengths:

Available in 121’ through 200’ continuous lengths.

Part No. Description Product No. Standard Pack Hose ID Hose OD WP Min. Burst MBR Request a Quote
In. In. psi psi In.
85477 6EFG4K X25FT 4651-4005 1 3/8 0.8 4000 16000 2.5 Request Quote
85491 6EFG4K X50FT 4651-1430 1 3/8 0.8 4000 16000 2.5 Request Quote
70400 6EFG4KX100REEL 4651-5024 100 3/8 0.8 4000 16000 2.5 Request Quote
70811 6EFG4KXCTN 4651-1338 100 3/8 0.8 4000 16000 2.5 Request Quote
70157 6EFG4KXREEL 4651-0117 300 3/8 0.8 4000 16000 2.5 Request Quote
85478 8EFG4K X25FT 4651-4006 1 1/2 0.94 4000 16000 3.5 Request Quote
85492 8EFG4K X50FT 4651-1431 1 1/2 0.94 4000 16000 3.5 Request Quote
70401 8EFG4KX100REEL 4651-5025 100 1/2 0.94 4000 16000 3.5 Request Quote
70863 8EFG4KXCTN 4651-1339 100 1/2 0.94 4000 16000 3.5 Request Quote
70976 8EFG4KXLL 4651-1611 200 1/2 0.94 4000 16000 3.5 Request Quote
70158 8EFG4KXREEL 4651-0118 240 1/2 0.94 4000 16000 3.5 Request Quote
85479 10EFG4K X25FT 4651-4007 1 5/8 1.09 4000 16000 4 Request Quote
70813 10EFG4KXCTN 4651-1367 100 5/8 1.09 4000 16000 4 Request Quote
10EFG4KXLL 4651-1614 200 5/8 1.09 4000 16000 4 Request Quote
70159 10EFG4KXREEL 4651-0119 200 5/8 1.09 4000 16000 4 Request Quote
85480 12EFG4K X25FT 4651-4011 1 3/4 1.21 4000 16000 4.7 Request Quote
85494 12EFG4K X50FT 4651-1432 1 3/4 1.21 4000 16000 4.7 Request Quote
70831 12EFG4KXCTN 4651-1282 100 3/4 1.21 4000 16000 4.7 Request Quote
70717 12EFG4KXLL 4651-1385 200 3/4 1.21 4000 16000 4.7 Request Quote
70166 12EFG4KXREEL 4651-0126 200 3/4 1.21 4000 16000 4.7 Request Quote
85481 16EFG4K X25FT 4651-4012 1 1 1.5 4000 16000 6 Request Quote
85495 16EFG4K X50FT 4651-1433 1 1 1.5 4000 16000 6 Request Quote
70807 16EFG4K X100FT 4651-1460 100 1 1.5 4000 16000 6 Request Quote
70832 16EFG4KXCTN 4651-1283 100 1 1.5 4000 16000 6 Request Quote
70718 16EFG4KXLL 4651-1386 200 1 1.5 4000 16000 6 Request Quote
85482 20EFG4K X25FT 4651-4013 1 1 1/4 1.85 4000 16000 8.2 Request Quote
85438 20EFG4K X50FT 4651-1520 1 1 1/4 1.85 4000 16000 8.2 Request Quote
70833 20EFG4KXCTN 4651-1284 50 1 1/4 1.85 4000 16000 8.2 Request Quote
70719 20EFG4KXLL 4651-1387 200 1 1/4 1.85 4000 16000 8.2 Request Quote
48EFG4K X CRATE 4651-1818 200 3 3.86 4000 16000 35 Request Quote
