Gates

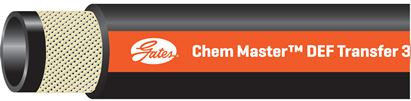

Chem Master DEF Transfer 350

Types:
Chemical Hose     Sub Type: Chemical Transfer Hose

Vendor: Gates

Application:

DEF dispensing tank fill hose. Transfer of urea solutions such as ADBLUE.

Design Factor:

4:1

Standards:

Tube: Zinc and Calcium Carbonate Free.

Tube:

Type P (EPDM). Black – Peroxide Cured – No Zinc.

Reinforcement:

Synthetic, high tensile textile cord.

Cover:

Type P (EPDM). Black with orange stripe. Wrapped appearance.

Temperature:

-40°F to +212°F (-40°C to +100°C) continuous service.

Packaging:

Reel

Couplings:

Contact JGB for proper hose fitting requirements.

Item No.	Nom. I.D.		Nom. O.D.		Max. W.P.		Suction		Min. Bend Radius		Wt. Per Ft.	Request a Quote
	ln.	mm	ln.	mm	psi	Mpa	ln. Hg	mm Hg	ln.	mm	Lbs.
4217-0310	3/4	19.1	1.13	28.5	350	2.40	15.0	381	4.0	101.6	.32	Request Quote
4217-0311	1	25.4	1.36	34.5	350	2.40	10.0	254	6.0	152.4	1.00	Request Quote
