Kentak

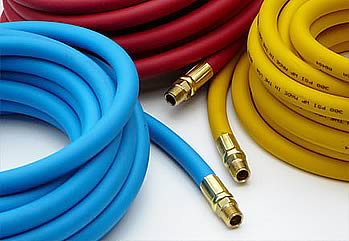

Air-Tak Industrial Vinyl Air Hose Assemblies

Types:
Air and Multipurpose Hose

Vendor: Kentak

Application:

FORMULATED FOR MEDIUM-DUTY INDUSTRIAL APPLICATIONS

Profile:

• 300 PSI rating coupled 1/4” Male x Male
• Sizes with 1/4" Brass Fittings on both ends (more sizes available on request)

Air-Tak® is a registered trademark of Kentak Products Company

Tube:

Polyvinyl Chloride (PVC) inner and outer tube

Reinforcement:

Polyester textile yarn reinforcement

Temperature:

+25° F to +150° F

Packaging:

Coils

Branding:

300 PSI AT 70° F MADE IN USA

Couplings:

1/4" Brass Fittings on both ends

Lengths:

Coil Lengths of 25, 50 and 100 Feet

Colors:

Patriot Red, Signal Yellow and George Washington Blue

Red	Yellow	Blue	I.D.	O.D.	WORKING PSI AT 70°F	LENGTH	Request Quote Red	Request Quote Yellow	Request Quote Blue
A2R-025	A2Y-025	A2D-025	1/4"	.500"	300 lbs	25 ft	Request Quote	Request Quote	Request Quote
A2R-050	A2Y-050	A2D-050	1/4"	.500"	300 lbs	50 ft	Request Quote	Request Quote	Request Quote
A2R-100	A2Y-100	A2D-100	1/4"	.500"	300 lbs	100 ft	Request Quote	Request Quote	Request Quote
A3R-025	A3Y-025	A3D-025	3/8"	.595"	300 lbs	25 ft	Request Quote	Request Quote	Request Quote
A3R-050	A3Y-050	A3D-050	3/8"	.595"	300 lbs	50 ft	Request Quote	Request Quote	Request Quote
A3R-100	A3Y-100	A3D-100	3/8"	.595"	300 lbs	100 ft	Request Quote	Request Quote	Request Quote

Note: As temperature increases, the working pressure decreases.
