Federal Hose

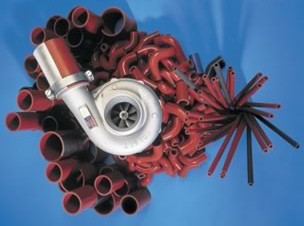

3-Ply Turbo Sleeve Turbocharger Hose

Application:

Turbocharger hoses are used to make connections to the engine air intake manifold, lubricating oil return path to engine crank case and sump.

These hoses are often mounted in inaccessible locations and provide a highly durable and reliable connection. It is also used for wastegate valve to the source of operating air. This hose can be supplied cut to length or in continuous reel format for cutting to length on the shop floor. It is available in straight, shaped and stepped bore configurations.

Turbocharger Hose is reinforced with meta-aramid fabric for excellent resistance to vibrational fatigue and are suitable for operation at temperatures up to +500F (+260C).

Reinforcement:

Meta-Aramid Fabric

Temperature:

- 65°F to +500°F

Packaging:

Lengths:

3.0 feet

Options:

Also available in 12' length. Consult JGB customer service to order 12ft.
Available in straight, shaped and stepped bore configurations.
Can be supplied cut to length or in continuous reel format for cutting to length on the shop floor.

Part #	I.D. (Inches)	Operating Pressure (PSIG)	Burst (PSIG)	Weight (Lb/ft)	Request Quote
7701-100	1.00	45	135	0.50	Request Quote
7701-125	1.25	40	125	0.55	Request Quote
7701-150	1.50	40	120	0.60	Request Quote
7701-200	2.00	35	105	0.70	Request Quote
7701-225	2.25	30	95	0.75	Request Quote
7701-250	2.50	30	90	0.80	Request Quote
7701-275	2.75	25	80	0.85	Request Quote
7701-300	3.00	25	75	0.90	Request Quote
7701-325	3.25	20	65	0.95	Request Quote
7701-350	3.50	20	60	1.00	Request Quote
7701-375	3.75	15	50	1.05	Request Quote
7701-400	4.00	15	45	1.10	Request Quote
7701-600	6.00	10	25	1.30	Request Quote
