Kuriyama

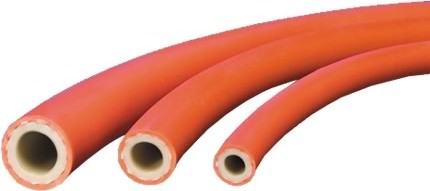

Kuri Tec NYLAFLOW Series A4152 NYLON-LINED Medium Pressure Paint Fluid and Solvents Transfer Hose

Types:
Chemical Hose     Sub Type: Chemical Transfer Hose

Vendor: Kuriyama

Application:

NYLAFLOW® is a highly durable and lightweight all-purpose solvent transfer hose. Ideal for transfer of paint fluids, chemical solvents, asphalt sealer solvents, acrylics, enamels, lacquers, thinners, turpentine, oils and many other finishes.

• Transfer of paint fluids, acrylics, enamels, lacquers, and other finishes.
• Transfer of chemical solvents and oils.
• Asphalt sealing and coating equipment.
• Concrete curing and spraying.
• Robotic paint spray equipment.
• Manual paint spraying.
• Spraying of automobile “rustproofing” fluids.
• Low temperature transfer of chemicals.

Features

• Excellent chemical and permeation resistance.
• Extremely flexible and durable.
• Compatible with popular spray fittings, such as Binks and DeVilbiss.
• Silicone-free.
• One-piece lengths.
• Lightweight and easy to handle.
• RoHS compliant.

Tube:

Co-extruded Nylon/Polyolefin.

Reinforcement:

High tensile strength yarn.

Cover:

Orange rubber blend compound.

Temperature:

-40 to 150 ºF
-40 to 65 ºC

Packaging:

Coils

Lengths:

300 ft.

Category:

Kuri Tec®

Colors:

Orange

Item #	Nominal I.D.		Nominal O.D.		Max. Working Pressure at 70ºF (20ºC)	Max. Working Pressure at 122ºF (50ºC)	Std. Length Coils	Approx. Wt. per Pkg.	Request Quote
A4152-04	0.250 in	6.5 mm	0.500 in	12.7 mm	250 PSI	85 PSI	300 ft	21.0 lbs	Request Quote
A4152-06	0.380 in	9.5 mm	0.680 in	17.3 mm	250 PSI	85 PSI	300 ft	36.0 lbs	Request Quote
A4152-08	0.500 in	12.70 mm	0.880 in	22.2 mm	250 PSI	85 PSI	300 ft	54.0 lbs	Request Quote
