Kuriyama

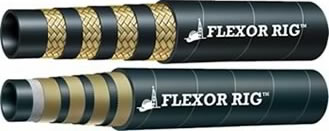

Flexor Rig Slim Hole Rotary Drilling Hose

Types:
Oil Hose (Suction and Discharge)
Suction & Discharge     Sub Type: Oil Hose Suction & Discharge

Vendor: Kuriyama

Application:

Rotary hose, specially designed for use in portable, work-over and seismograph drilling rigs.

† Safety Factor — 4:1 for ID sizes 1" to 2". 3:1 for ID sizes 2 1/2" to 3".

Tube:

Oil resistant synthetic rubber

Reinforcement:

Four or six spiral wires for sizes -16 through -40 and four high tensile steel braids for size -48.

Cover:

Minetuff Abrasion, Ozone, Hydrocarbon and Flame Resistant Synthetic Pin Pricked Rubber.

Temperature:

-40 ºF (-40 ºC) to 250 ºF (+121 ºC) Constant Operation
-40 ºF to 200 ºF Ambient Temperature

Branding:

ALFAGOMMA FLEXOR RIG ID – SLIM HOLE ROTARY –…WP …MPa (…PSI) – DN – IN…MSHA IC-152/9 - Q/YR

Lengths:

100 ft & 200 ft

Series Number	Size Code	Construction	Nominal ID		Nominal OD		Max. Working† Pressure (psi)	Min. Bend. Radius		Approx. Weight	Coupling Recommendations			Request a Quote
			(In)	(mm)	(In)	(mm)		(In)	(mm)	(lbs)	AlfaCrimp One-Piece		Two-Piece Couplings	100 ft.	200 ft.
													Interlock
FLEXOR RIG-16	16	4 Spiral	1	25	1.48	37.6	5000	7.1	180	1.13	F		XF2	Request Quote	Request Quote
FLEXOR RIG-20	20	4 Spiral	1 1/4	32	1.8	45.8	5000	11	280	1.7	F		XF2	Request Quote	Request Quote
FLEXOR RIG-24	24	6 Spiral	1 1/2	38	2.22	56.5	5000	19.6	500	3.02	F		XF1	Request Quote	Request Quote
FLEXOR RIG-32	32	6 Spiral	2	51	2.76	70.2	5000	21.6	550	4.14	M	F	XF1	Request Quote	Request Quote
FLEXOR RIG-40	40	4 Spiral	2 1/2	64	3.2	81	3000	28.8	720	4.26			XF1	Request Quote	Request Quote
FLEXOR RIG-48*	48	4 Spiral	3	76	3.64	92.5	3000	33.1	840	3.64			VS4 – External Skive	Request Quote	Request Quote
