Kuriyama

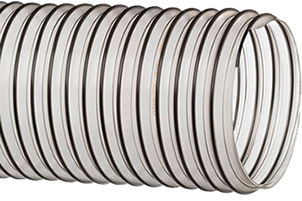

Flexair Urevent™ Clear URE-CL™ Series Food Grade Polyurethane Ducting/ Material Handling Hose

Types:
Ducting
Material Handling Hose     Sub Type: Material Handling Abrasives and Corrosives hose

Vendor: Kuriyama

Application:

• Concrete resurfacing dust collection
• Ducting, ventilation & fume removal
• Dust control
• Food grade material handling
• Insulation blowing
• Lavatory waste disposal
• Material handling – standard duty
• Oil mist collection
• Pharmaceutical product transfer
• Woodworking, furniture dust & chip control

FEATURES & Advantages:

• Durable & Lightweight Polyurethane Material – Designed for wet or dry applications where abrasion is a factor. Provides longer hose life and lower operating costs versus similar rubber or PVC hoses.
• Steel Wire Helix – Provides strength and allows for use at higher temperatures without risk of hose deformation. Wire can be grounded for static dissipation.
• Food Grade Material – Hose compiles with applicable FDA requirements.
• Transparent Construction – “See-the-flow”. Allows for visual confirmation of material flow.
• “Cold-Flex” Material – Hose remains flexible in sub-zero temperatures.
• Oil Resistant Polyurethane – Resists most animal and petroleum based oils.
• Pthalate Free.

Tube:

0.030" thick ether polyurethane (TPU) hose with steel wire helix

Temperature:

-65°F (-54°C) to +225°F (+107°C); intermittent service to +250°F (+121°C)*

Lengths:

25 ft./ctn

Category:

Flexair

Options:

50 Ft. lengths are available on special request. Contact JGB customer service for pricing and lead time.

Series Number	ID		OD		Working Pressure	Vacuum Rating	Min. Bending Radius	Compression Ratio	Weight	Request a Quote
	(in)	(mm)	(in)	(mm)	(psi) 68°F	(in Hg) 68°F	(in) 68°F		(lbs/ft)
URE-CL200	2	50.8	2.23	56.6	31	29	2	3:1	0.36	Request Quote
URE-CL250	2 1/2	63.5	2.73	69.3	31	29	2	3:1	0.4	Request Quote
URE-CL300	3	76.2	3.23	82	30	29	2.5	3:1	0.44	Request Quote
URE-CL400	4	101.6	4.28	108.7	26	22	3.5	3:1	0.62	Request Quote
URE-CL500	5	127	5.28	134.1	22	21	4.5	3:1	0.65	Request Quote
URE-CL600	6	152.4	6.33	160.8	20	19	5.5	3:1	0.84	Request Quote
URE-CL800	8	203.2	8.33	211.6	14	14	7	3:1	1.4	Request Quote
URE-CL1000	10	255	10.33	262.4	11	6	8	3:1	1.93	Request Quote
URE-CL1200	12	304.8	12.33	313.2	10	5	9	3:1	2.26	Request Quote

BSE/TSE⁽⁰²⁾, FDA⁽⁰³⁾, Phthalate Free⁽⁰⁵⁾, RoHS⁽⁰⁶⁾
