Kuriyama

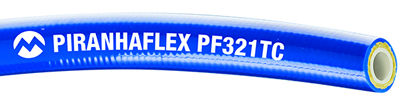

PIRANHAFLEX™ PF321TC Series Tank Charge Hose

Types:
Hydraulic Hose
Special Application

Vendor: Kuriyama

Application:

Piranhaflex™ PF321TC Series hose for use with compressed breathing air.

NOTE:

• This hose is intended for stationary applications as a fill hose for breathing air tanks.
• “NOT” for use with explosive gasses such as pure oxygen and hydrogen.
• “NOT” for use between regulator and breathing mask.

FEATURES:

• Specially compounded tube minimizes extraction of particulates while in service.
• Pin-pricked jacket
• Hose complies with CGA Grade E Breathing Air Standards. Overall air quality depends on all system components
• Blue colored cover for ease of identification. Other colors available as an MTO (made-to-order)

Tube:

Seamless co-polyester inner tube.

Reinforcement:

Aramid fiber reinforcement.

Cover:

Blue abrasion resistant (Reach Compliant) polyurethane cover.

Temperature:

-40°F (-40°C) to +150° F (+65.5°C)

Packaging:

Hoses supplied in 250 ft. reels. All reels will have no more than 2 pieces, with no piece less than 50’ in length.

Category:

PIRANHAFLEX™

Colors:

Blue

Series Number	Size Code	Nominal ID	Nominal OD	Max. Working Pressure	Min. Bend. Radius	Approx. Weight	Two-Piece Coupling Recommendations (Ferrule Non-Skive)	Request a Quote
PF321TC-03-250R	3	3/16 in 4.8 mm	0.400 in 10.2 mm	6000 psi	1.50 in 38.1 mm	0.06 lbs/ft	PFR-03	Request Quote
PF321TC-04-250R	4	1/4 in 6.4 mm	0.485 in 12.3 mm	6000 psi	2.00 in 50.8 mm	0.07 lbs/ft	PFR-04	Request Quote
