Kuriyama

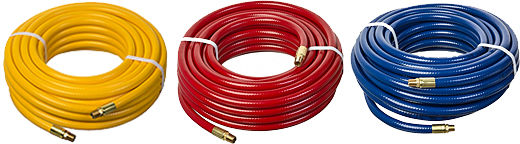

Kuri Tec HS1181, HS1184, HS1186 Series Utility-Grade PVC Air Tool Hose Assemblies

Types:
Air and Multipurpose Hose

Vendor: Kuriyama

Application:

A lightweight utility air and water hose economically designed for indoor and outdoor applications operating in temperate climate conditions.

Transfer of air, water and mild water soluble chemicals.
Indoor/outdoor air tool service.

Features:

Economical, lightweight construction.
U. V. and weather resistant.
One-piece coils.
Phthalate Free!

Tube:

Black PVC compound

Reinforcement:

High tensile strength yarn

Cover:

PVC compound

Temperature:

+14°F (-10°C) to +150°F (+65°C)

Couplings:

1/4" ID – 1/4" X 1/4"M NPT
3/8" ID – 3/8" X 1/4"M NPT

Category:

Kuri Tec

Item #	Standard Colors	Size Code	Nominal ID		Nominal OD		Maximum Working Pressure† at 70ºF (20ºC)	Assembled Lengths	Approx. Wt. per Pkg.	Request a Quote
HS1181-04X25	Yellow	4	1/4 in	6.5 mm	0.475 in	12.1 mm	300 psi	25 ft	1.9 lb	Request Quote
HS1181-06X25	Yellow	6	3/8 in	9.5 mm	0.600 in	15.2 mm	300 psi	25 ft	2.6 lb	Request Quote
HS1181-04X50	Yellow	4	1/4 in	6.5 mm	0.475 in	12.1 mm	300 psi	50 ft	3.7 lb	Request Quote
HS1181-06X50	Yellow	6	3/8 in	9.5 mm	0.600 in	15.2 mm	300 psi	50 ft	5.1 lb	Request Quote
HS1181-04X100	Yellow	4	1/4 in	6.5 mm	0.475 in	12.1 mm	300 psi	100 ft	7.4 lb	Request Quote
HS1181-06X100	Yellow	6	3/8 in	9.5 mm	0.600 in	15.2 mm	300 psi	100 ft	10.2 lb	Request Quote
HS1184-04X25	Red	4	1/4 in	6.5 mm	0.475 in	12.1 mm	300 psi	25 ft	1.9 lb	Request Quote
HS1184-06X25	Red	6	3/8 in	9.5 mm	0.600 in	15.2 mm	300 psi	25 ft	2.6 lb	Request Quote
HS1184-04X50	Red	4	1/4 in	6.5 mm	0.475 in	12.1 mm	300 psi	50 ft	3.7 lb	Request Quote
HS1184-06X50	Red	6	3/8 in	9.5 mm	0.600 in	15.2 mm	300 psi	50 ft	5.1 lb	Request Quote
HS1184-04X100	Red	4	1/4 in	6.5 mm	0.475 in	12.1 mm	300 psi	100 ft	7.4 lb	Request Quote
HS1184-06X100	Red	6	3/8 in	9.5 mm	0.600 in	15.2 mm	300 psi	100 ft	10.2 lb	Request Quote
HS1186-04X25	Blue	4	1/4 in	6.5 mm	0.475 in	12.1 mm	300 psi	25 ft	1.9 lb	Request Quote
HS1186-04X50	Blue	4	1/4 in	6.5 mm	0.475 in	12.1 mm	300 psi	50 ft	3.7 lb	Request Quote
HS1186-04X100	Blue	4	1/4 in	6.5 mm	0.475 in	12.1 mm	300 psi	100 ft	7.4 lb	Request Quote
HS1186-06X25	Blue	6	3/8 in	9.5 mm	0.600 in	15.2 mm	300 psi	25 ft	2.6 lb	Request Quote
HS1186-06X50	Blue	6	3/8 in	9.5 mm	0.600 in	15.2 mm	300 psi	50 ft	5.1 lb	Request Quote
HS1186-06X100	Blue	6	3/8 in	9.5 mm	0.600 in	15.2 mm	300 psi	100 ft	10.2 lb	Request Quote
