Kuriyama
Polyurethane Self-Store Tubing and Reinforced Hose

Types:
Air and Multipurpose Hose

Vendor: Kuriyama

Application:

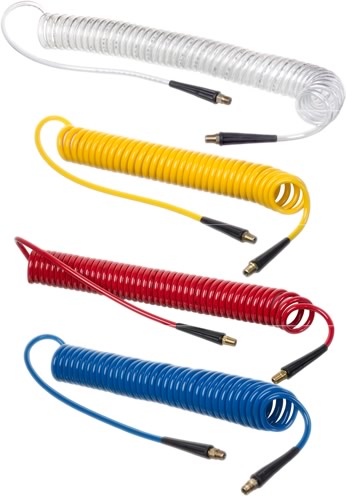

Series HSC2840 Blue Tint, HSC2841 Yellow, HSC2844 Red, HSC2846 Blue Polyurethane Self-Store Tubing & Reinforced Hose is an ether based polyurethane self-store coiled tubing & hose assemblies for air tool service.

NOTE: Not recommended for transfer of brake fluids.

Standard assemblies have 4" pigtail and 20" whip end.
Permanent crimped male swivel brass fittings provide greater strength and pull-out resistance . . . rubber bend restrictors over fittings prevents scratches and scuffs.

Temperature:

-40 to 175 ºF
-40 to 80 ºC

Category:

Kuri Tec®

Blue Tint

Item #	Size Code x Length	Nominal ID	Nominal OD	Maximum Working Pressure at 70ºF (20ºC)	Maximum Working Pressure at 122ºF (50ºC)	Working Length	Coil OD	Approx. Wt. per Pkg.	Request a Quote
HSC2840-04X10	04 x 10	1/4 in	0.375 in	125 psi	75 psi	8 ft	2 in	5.0 lb	Request Quote
HSC2840-04X15	04 x 15	1/4 in	0.375 in	125 psi	75 psi	12 ft	2 in	6.5 lb	Request Quote
HSC2840-04X20	04 x 20	1/4 in	0.375 in	125 psi	75 psi	16 ft	2 in	8.5 lb	Request Quote
HSC2840-04X25	04 x 25	1/4 in	0.375 in	125 psi	75 psi	20 ft	2 in	10 lb	Request Quote
HSC2840-04X30	04 x 30	1/4 in	0.375 in	125 psi	75 psi	24 ft	2 in	12 lb	Request Quote
HSC2840-04X50	04 x 50	1/4 in	0.375 in	125 psi	75 psi	40 ft	2 in	2 lb	Request Quote
HSC2840-06X10	06 x 10	3/8 in	0.570 in	125 psi	75 psi	8 ft	3 in	5.0 lb	Request Quote
HSC2840-06X15	06 x 15	3/8 in	0.570 in	125 psi	75 psi	12 ft	3 in	7 lb	Request Quote
HSC2840-06X20	06 x 20	3/8 in	0.570 in	125 psi	75 psi	16 ft	3 in	9.00 lb	Request Quote
HSC2840-06X25	06 x 25	3/8 in	0.570 in	125 psi	75 psi	20 ft	3 in	11 lb	Request Quote
HSC2840-06X30	06 x 30	3/8 in	0.570 in	125 psi	75 psi	24 ft	3 in	12 lb	Request Quote
HSC2840-06X50	06 x 50	3/8 in	0.570 in	125 psi	75 psi	40 ft	3 in	4 lb	Request Quote

Yellow

Item #	Size Code x Length	Nominal ID	Nominal OD	Maximum Working Pressure at 70ºF (20ºC)	Maximum Working Pressure at 122ºF (50ºC)	Working Length	Coil OD	Approx. Wt. per Pkg.	Request a Quote
HSC2841-04X10	04 x 10	1/4 in	0.375 in	125 psi	75 psi	8 ft	5.0 lb	2 in	Request Quote
HSC2841-04X15	04 x 15	1/4 in	0.375 in	125 psi	75 psi	12 ft	6.5 lb	2 in	Request Quote
HSC2841-04X20	04 x 20	1/4 in	0.375 in	125 psi	75 psi	16 ft	8.5 lb	2 in	Request Quote
HSC2841-04X25	04 x 25	1/4 in	0.375 in	125 psi	75 psi	20 ft	10.0 lb	2 in	Request Quote
HSC2841-04X30	04 x 30	1/4 in	0.375 in	125 psi	75 psi	24 ft	12.0 lb	2 in	Request Quote
HSC2841-04X50	04 x 50	1/4 in	0.375 in	125 psi	75 psi	40 ft	2.0 lb	2 in	Request Quote
HSC2841-06X10	06 x 10	3/8 in	0.570 in	125 psi	75 psi	8 ft	5.0 lb	3 in	Request Quote
HSC2841-06X15	06 x 15	3/8 in	0.570 in	125 psi	75 psi	12 ft	7.0 lb	3 in	Request Quote
HSC2841-06X20	06 x 20	3/8 in	0.570 in	125 psi	75 psi	16 ft	9.0 lb	3 in	Request Quote
HSC2841-06X25	06 x 25	3/8 in	0.570 in	125 psi	75 psi	20 ft	11.0 lb	3 in	Request Quote
HSC2841-06X30	06 x 30	3/8 in	0.570 in	125 psi	75 psi	24 ft	12.0 lb	3 in	Request Quote
HSC2841-06X50	06 x 50	3/8 in	0.570 in	125 psi	75 psi	40 ft	4.0 lb	3 in	Request Quote

Red

Item #	Size Code x Length	Nominal ID	Nominal OD	Maximum Working Pressure at 70ºF (20ºC)	Maximum Working Pressure at 122ºF (50ºC)	Working Length	Coil OD	Approx. Wt. per Pkg.	Request a Quote
HSC2844-04X10	04 x 10	1/4 in	0.375 in	125 psi	75 psi	8 ft	5.0 lb	2 in	Request Quote
HSC2844-04X15	04 x 15	1/4 in	0.375 in	125 psi	75 psi	12 ft	6.5 lb	2 in	Request Quote
HSC2844-04X20	04 x 20	1/4 in	0.375 in	125 psi	75 psi	16 ft	8.5 lb	2 in	Request Quote
HSC2844-04X25	04 x 25	1/4 in	0.375 in	125 psi	75 psi	20 ft	10 lb	2 in	Request Quote
HSC2844-04X30	04 x 30	1/4 in	0.375 in	125 psi	75 psi	24 ft	12 lb	2 in	Request Quote
HSC2844-04X50	04 x 50	1/4 in	0.375 in	125 psi	75 psi	40 ft	2 lb	2 in	Request Quote
HSC2844-06X10	06 x 10	3/8 in	0.570 in	125 psi	75 psi	8 ft	5.0 lb	3 in	Request Quote
HSC2844-06X15	06 x 15	3/8 in	0.570 in	125 psi	75 psi	12 ft	7 lb	3 in	Request Quote
HSC2844-06X20	06 x 20	3/8 in	0.570 in	125 psi	75 psi	16 ft	9.00 lb	3 in	Request Quote
HSC2844-06X25	06 x 25	3/8 in	0.570 in	125 psi	75 psi	20 ft	11 lb	3 in	Request Quote
HSC2844-06X50	06 x 50	3/8 in	0.570 in	125 psi	75 psi	40 ft	4 lb	3 in	Request Quote

Blue

Item #	Size Code x Length	Nominal ID	Nominal OD	Maximum Working Pressure at 70ºF (20ºC)	Maximum Working Pressure at 122ºF (50ºC)	Working Length	Coil OD	Approx. Wt. per Pkg.	Request a Quote
HSC2846-04X15	04 x 15	1/4 in	0.375 in	125 psi	75 psi	12 ft	6.5 lb	2 in	Request Quote
HSC2846-04X25	04 x 25	1/4 in	0.375 in	125 psi	75 psi	20 ft	10.0 lb	2 in	Request Quote
HSC2846-04X50	04 x 50	1/4 in	0.375 in	125 psi	75 psi	40 ft	2.0 lb	2 in	Request Quote
HSC2846-06X15	06 x 15	3/8 in	0.570 in	125 psi	75 psi	12 ft	7.0 lb	3 in	Request Quote
HSC2846-06X25	06 x 25	3/8 in	0.570 in	125 psi	75 psi	20 ft	11.0 lb	3 in	Request Quote
HSC2846-06X50	06 x 50	3/8 in	0.570 in	125 psi	75 psi	40 ft	4.0 lb	3 in	Request Quote
