Pacific Echo

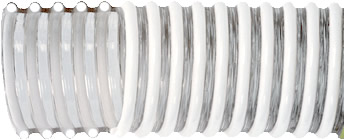

Spiralite 195
Types:
Ducting
Vendor: Pacific Echo
Application:
Air and light abrasive ducting. Light dredge suction. Also available in Low-Temperature version (194). Lightweight but capable of light suction duties.Tube:
Clear PVC
Reinforcement:
White helix
Temperature:
-10°F to 130°F
Lengths:
1-1/2" thru 6" 100ft 7" and 8" 50ft. 10" and 12" 25ft.
Category:
PVC Clear Heavy Duct Hose
| Nominal Size | Approx. O.D. | Recom. W.P. at 68°F | Vacuum Rating at 68°F | Bend Radius at 68°F | Approx. B.P. at 68°F | Approx. Wt. | REQUEST QUOTE |
| inch | inch | psi | in/HG | inch | psi | lbs/ft | |
| 1-1/2 | 1.83 | 40 | 28 | 3 | 120 | .32 | Request a Quote |
| 2 | 2.40 | 35 | 28 | 4 | 100 | .48 | Request a Quote |
| 2-1/2 | 2.91 | 25 | 26 | 5 | 75 | .60 | Request a Quote |
| 3 | 3.54 | 25 | 28 | 6 | 75 | .86 | Request a Quote |
| 4 | 4.56 | 25 | 28 | 8 | 75 | 1.29 | Request a Quote |
| 5 | 5.63 | 25 | 20 | 10 | 75 | 1.93 | Request a Quote |
| 6 | 6.82 | 25 | 20 | 12 | 75 | 3.04 | Request a Quote |
| 7 | 7.90 | 20 | 20 | 15 | 60 | 3.80 | Request a Quote |
| 8 | 8.91 | 20 | 16 | 18 | 60 | 4.32 | Request a Quote |
| 10 | 11.18 | 20 | 16 | 23 | 60 | 7.47 | Request a Quote |
| 12 | 13.15 | 20 | 16 | 29 | 60 | 8.87 | Request a Quote |
 |
