BRP

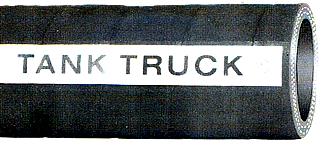

Tank Truck Hose - Style No. 7975

Types:
Petroleum Hose     Sub Type: Petroleum Dispensing Hose / Petroleum Petro Transfer Hose / Petroleum Suction & Discharge Hose

Vendor: BRP

Application:

This hose is used for the transfer of leaded or unleaded gasolines, oils and other petroleum products in suction or discharge applications.

Tube:

Buna "N"

Reinforcement:

Two plies of high tensile synthetic fabric with a floating spring steel helix wire between the plies

Cover:

Neoprene

Couplings:

Contact JGB for proper fitting recommendation and coupling procedure.

Lengths:

Standard length is 60 ft.

I.D. (IN)	O.D. (IN)	Max WP (PSI)	Min. Bend Radius	Wt/lbs. 100 Ft.	Request a Quote
1-1/2	2-1/16	150	9	122	Request Quote
2	2-5/8	150	12	150	Request Quote
2-1/2	3-1/8	150	15	189	Request Quote
3	3-5/8	150	18	226	Request Quote
4	4-11/16	150	24	295	Request Quote
