Parker Industrial

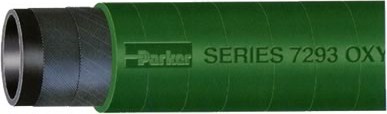

Oxygen Charging Hose - Series 7293
Types:
Welding
Vendor: Parker Industrial
Application:
- High pressure oxygen
- Lancing, scarfing
- Foundries, Steel Mills
Series 7293 is designed for high pressure oxygen lancing and scarfing applications in foundries and steel mills. The hose construction incorporates flame and oil resistant tube and cover compounds. The green cover is resistant to abrasion and weathering, and color-coded for easy and quick identification for oxygen service. The tube is cleaned and the ends are capped at the factory to prevent contamination.
Design Factor: 4:1
Vacuum: Not recommended
Industry Standards: None applicable
Tube:
Black chloroprene
Reinforcement:
Multiple textile plies
Cover:
Green chloroprene; wrapped finish
Temperature:
-22°F to +176°F (-30°C to +80°C)
Packaging:
Coils
Branding:
PARKER SERIES 7293 OXYGEN CHARGING 500 PSI MAX WP MADE IN USA
Couplings:
Contact JGB for proper fitting recommendation and coupling procedure.
Colors:
Green
Options:
Series 7293 is available in 200-foot continuous lengths.
Part No. | ID | Reinf. Plies | OD | Approx. Wt | Min. Bend Rad | Max. Rec. WP | Request a Quote | ||
(in) | (mm) | (in) | (mm) | (lbs./100ft) | (in) | (psi) | |||
7293-0500 | 1/2 | 12.7 | 4 | .992 | 25.2 | 38 | 3.5 | 500 | Request Quote |
7293-0750 | 3/4 | 19.1 | 4 | 1.276 | 32.4 | 54 | 3.5 | 500 | Request Quote |
7293-1000 | 1 | 25.4 | 4 | 1.528 | 38.8 | 68 | 4.5 | 500 | Request Quote |
7293-1250 | 1-1/4 | 31.8 | 4 | 1.930 | 49.0 | 108 | 5.0 | 500 | Request Quote |
7293-1500 | 1-1/2 | 38.1 | 4 | 2.174 | 55.2 | 124 | 7.0 | 500 | Request Quote |
7293-2000 | 2 | 50.8 | 4 | 2.764 | 70.2 | 169 | 14.0 | 500 | Request Quote |
