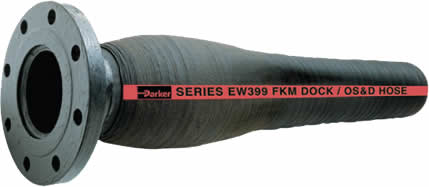

Heavy Duty Dock Hose - Petrochemical Service - Series EW399

Heavy Duty Dock Hose - Petrochemical Service - Series EW399

Types:
Petroleum Hose     Sub Type: Petroleum Dock Hose


Vendor: Parker Industrial

Application:

Heavy Duty Dock Hose – Petrochemical Service FKM Tube, USCG
Series EW399 Custom Made Hose

  • Petrochemicals; oil and fuel to 100% aromatic content
  • Transfer between barges, storage tanks and marine vessels

Series EW399 is a heavy duty, high pressure suction and discharge/dock hose for transferring oil, fuel and petrochemical products between tankers, barges, and storage tanks. The hose construction incorporates a specially formulated, premium quality tube that resists multiple types and concentrations of media to 100% aromatic content. The wire helix provides full suction capability, kink resistance and a path to conduct a static electrical charge to ground. The rugged cover is resistant to abrasion, mild chemicals, oil and weathering. Series EW399 meets all United States Coast Guard (USCG) requirements for dock/OS&D hose.

NOTE:
  • Other customized versions of this product are available. Contact JGB.

Design Factor:  4:1
Vacuum:  Full
Industry Standards:  USCG

Tube:

Black FKM fluoroelastomer

Reinforcement:

Multiple plies of tire cord with wire helix

Cover:

Black synthetic rubber; wrapped finish

Temperature:

-40°F to +180°F (-40°C to +82°C)

Packaging:

Lengths or coils in bales, crates or slat packs

Branding:

PARKER SERIES EW399 FKM DOCK / OS&D HOSE

Couplings:

Contact JGB for proper fitting recommendation and coupling procedure.

Colors:

Black with red stripe

Part No. ID ID Reinf
Plies
OD OD Approx Wt Approx Wt Min Bend Rad Min Bend Rad Max Rec WP  Max Lg  Request Quote
(in) (mm) (in) (mm) (lbs/ft) (kg/ft) (in) (mm) (psi) (ft)
EW399-4000 4 101.6 4 5.25 133.4 5.5 2.49 24 609.6 250 100 Request Quote
EW399-6000 6 152.4 6 7.313 185.7 8.5 3.86 36 914.4 250 100 Request Quote
EW399-8000 8 203.2 8 9.5 241.3 14.8 6.71 48 1219.2 250 50 Request Quote
EW399-10000 10 254 10 12 304.8 23 10.43 60 1524 250 50 Request Quote
