Parker Industrial

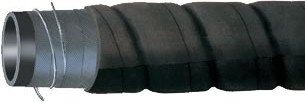

Corrugated Material Handling Hose - Series EWC334

Types:
Material Handling Hose     Sub Type: Material Handling Abrasives and Corrosives hose

Vendor: Parker Industrial

Application:

Corrugated Material Handling Hose
1/8" Natural Rubber Tube
Series EWC334 Custom Made Hose

• Abrasive materials, debris, water
• Construction, general industrial

Series EWC334 is a flexible, lightweight, low pressure material transfer hose for dry cement, powders and similar abrasive materials. The 1/8" natural rubber tube provides excellent abrasion resistance, durability and rebound, and the dual wire helix provides full suction capability, kink resistance and a path to conduct a static charge to ground. The corrugated SBR cover provides flexibility and is resistant to abrasion, cuts, scuffs and weathering.

NOTE:

• Other customized versions of this product are available. Contact JGB.

Design Factor:  4:1
Vacuum:  Full
Industry Standards: None applicable

Tube:

1/8" Black natural rubber

Reinforcement:

Multiple textile plies with dual wire helix

Cover:

Black SBR; corrugated wrapped finish

Temperature:

-40°F to +150°F (-40°C to +66°C)

Packaging:

Lengths or coils in bales, crates or slat packs

Branding:

Not branded

Couplings:

Contact JGB for proper fitting recommendation and coupling procedure.

Colors:

Black

Part Number	ID	ID	Reinf Plies	OD	OD	Approx Wt	Approx Wt	Min Bend Rad	Min Bend Rad	Max Rec WP	Max Lg	Request Quote
	(in)	(mm)		(in)	(mm)	(lbs/ft)	(kg/ft)	(in)	(mm)	(psi)	(ft)
EWC334-6000	6	152.4	4	6.875	174.6	5.6	2.54	29	736.6	135	100	Request Quote
EWC334-6625	6-5/8	168.3	4	7.5	190.5	6.4	2.9	32	812.8	125	100	Request Quote
EWC334-8000	8	203.2	4	8.875	225.4	8	3.63	38	965.2	100	100	Request Quote
EWC334-8625	8-5/8	219.1	4	9.563	242.9	8.8	3.99	42	1066.8	95	100	Request Quote
EWC334-10000	10	254	4	11	279.4	11.6	5.26	48	1219.2	85	50	Request Quote
EWC334-10750	10-3/4	273.1	4	11.75	298.5	12.4	5.62	52	1320.8	75	50	Request Quote
EWC334-12000	12	304.8	4	13.125	333.4	16.5	7.48	58	1473.2	65	50	Request Quote
EWC334-12750	12-3/4	323.9	4	13.872	352.4	17.5	7.94	62	1574.8	65	50	Request Quote
