Parker Industrial

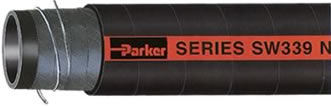

Heavy Duty Dock Hose - Series SW339

Heavy Duty Dock Hose - Series SW339

Types:
Petroleum Hose     Sub Type: Petroleum Dock Hose


Vendor: Parker Industrial

Application:

Heavy Duty Dock Hose - Petroleum Service USCG
Series SW339

  • Oil and fuel to 50% aromatic content
  • Transfer between barges, storage tanks and marine vessels

Series SW339 is a heavy duty oil suction and discharge (OS&D/dock hose for transferring oil between tankers, barges, and storage tanks. The hose construction incorporates a specially formulated tube that resists media to 50% aromatic content. The dual wire helix provides full suction capability, kink resistance, and a path to conduct a static electrical charge to ground. The rugged cover is resistant to abrasion, mild chemicals, oil and weathering. Series SW399 meets all United States Coaast Guard(USCG) requirements for dock/OS&D hose.

Design Factor:  4:1
Vacuum:  Full
Industry Standards:  USCG

Tube:

Black nitrile

Reinforcement:

Multiple plies of tire cord with dual wire helix

Cover:

Black synthetic rubber; wrapped finish

Temperature:

-40°F to +180°F (-40°C to +82°C)

Packaging:

Coils

Branding:

PARKER SERIES SW339 NITILE/OIL SERVICE 200 PSI WP MADE IN USA

Couplings:

Contact JGB for proper fitting recommendation and coupling procedure.

Lengths:

100 ft.

Colors:

Black with red stripe

Part
Number
ID
(in)
OD
(in)
Reinf
Plies
Bend
Radius
Working
Pressure
(psi)
Approx
Weight
(lb/ft)
Std Pack
Qty
(ft)
Request Quote
SW339-4000 4 5-3/16 4 16 200 5.80 100 Request Quote
SW339-6000 6 7-1/4 4 36 200 9.41 100 Request Quote
SW339-8000 8 9-1/4 4 48 200 12.35 100 Request Quote
