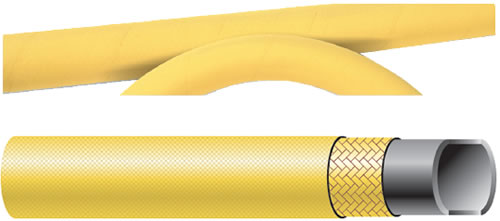

Semperit - PLD Hose

PLD Hose

Vendor: Semperit

Category: Air and Multipurpose Hose


Application:

A robust compressed air hose for lubricant-laden compressed air. Suitable for use in quarries, surface mining and road construction.

Tube:

SBR, black, smooth, suitable for oil-laden air

Reinforcement:

Steel wire braided

Cover:

SBR/EPDM, yellow, resistant to abrasion and weather, cloth impression

Temperature:

-35°C / +80°C

Branding:

Continuous labelling tape: "SEMPERIT S compressed air wire braid Luna PN 40bar"

Couplings:

Contact JGB for proper fitting recommendation and coupling procedure.

Safety factor:

3,15 : 1

Feature:

The steel wire reinforcement makes the hose suitable for high pressure and heavy duty applications.
Easily identified due to distinctive colour.

Notice:
Black cover available on request.

Compressed Air Hose
Article Number Internal-Ø in

Wall Width
in mm
External-Ø
in mm
Work. Pressure
(max.) bar
Number of Inserts Bending Radius
(min.) in mm
Weight Approx.
kg/m
Coil Length
(max.) m
Request a Quote
mm     inch
48400 2664 25,4 1 6,4 38,2 40 1 125 1,15 40 Request a Quote
48400 3875 38,0 1 1/2 7,5 53,0 40 2 190 2,30 40 Request a Quote
48400 5180 50,8 2 8,0 66,8 40 2 260 3,00 40 Request a Quote
48400 7690 76,2 3 9,0 94,2 40 2 450 3,95 40 Request a Quote
