Semperit - IFSD Hose

IFSD Hose

Vendor: Semperit

Category: Water Hose    Sub Type: Water Suction & Discharge Hose


Application:

Suction and delivery hose for heavy duty use for media such as waste water, sewage and service water.

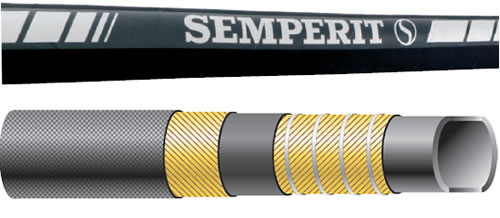

Tube:

SBR, black, smooth

Reinforcement:

Textile wrapped, zinc plated double steel wire helix (ID > 2 1/2" zinc plated steel wire helix)

Cover:

SBR, black, resistant to abrasion, ozone and weather, cloth impression

Temperature:

-35°C / +80°C

Branding:

Continuous transfer tape, white: "SEMPERIT (S) IFSD WATER S&D WP 10 BAR Made in Europe"

Couplings:

Contact JGB for proper fitting recommendation and coupling procedure.

Safety factor:

3 : 1

Notice:
On request:
- corrugated cover
- spiral-free or extended sleeves
- other colours and working pressures
- also available in EPDM quality.

Waste Water S&D Hose
Article number Internal-Ø in
Wall width
in mm
External-Ø
in mm
Work. pressure
(max.) bar
Number of s Bending radius
(min.) in mm
Weight approx.
kg/m
Coil length
(max.) m
Request a Quote
mm              inch
48600 2550 25,0 1 50 35,0 10 2 100 0,81 40 Request a Quote
48600 3250 32,0 1 1/4 50 42,0 10 2 120 0,88 40 Request a Quote
48600 3850 38,0 1 1/2 50 48,0 10 2 150 1,13 40 Request a Quote
48600 5050 50,0   50 60,0 10 2 200 1,55 40 Request a Quote
48600 6360 63,5 2 1/2 60 75,5 10 4 300 2,10 40 Request a Quote
56600 7560 75,0   60 87,0 10 4 350 2,35 40 Request a Quote
56600 7660 76,2 3 60 88,2 10 4 350 2,50 40 Request a Quote
56600 9070 90,0   70 104,0 10 4 450 2,70 40 Request a Quote
56600 0270 102,0 4 70 116,0 10 4 500 3,68 40 Request a Quote
56600 2780 127,0 5 80 143,0 10 4 600 5,70 40 Request a Quote
56600 5285 152,0 6 85 169,0 10 4 800 7,52 20 Request a Quote
56600 0310 203,0 8 100 223,0 10 6 1100 11,60 20 Request a Quote
56600 5411 254,0 10 110 276,0 10 6 1500 14,00 20 Request a Quote

Vacuum resistance up to -0.9 bar
