Semperit - SM 170 Hose
Vendor: Semperit
Category: Material Handling Hose
Sub Type: Material Handling Cement and Concrete
Application:
Specially developed hose for conveying concrete using concrete pumps. Suitable for conveying highly abrasive media such as concrete,cement and plaster.

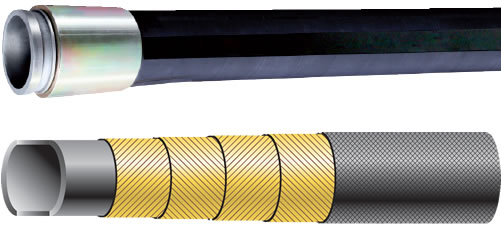

Tube:
NR SBR BR, black, smooth, antistatic, abrasion resistant.
Reinforcement:
Steel cord wrapped.
Cover:
SBR, black, antistatic, cloth impression.
Temperature:
-35°C / +80°C
Branding:
SEMPERIT S PUMPMASTER SM170 CONCRETE PUMPING/ BETON PUMPEN WP 85 BAR SAFETY FACTOR 2:1 (Month/Year) S DN...
Couplings:
Contact JGB for proper fitting recommendation and coupling procedure.
Safety factor:
2 : 1
Feature:
- Long service life due to abrasion resistant tube.
- Flexible and easy to handle, with good kink resistance due to a
special hose design. - Suitable for reverse pumping, for easy cleaning.
| Article Number | Internal-Ø in | Wall Width in mm |
External-Ø in mm |
Work. Pressure (max.) bar |
Number of Inserts | Bending radius (min.) in mm |
Weight approx. kg/m |
Coil Length (max.) m |
Request a Quote | |
| mm | inch | |||||||||
| 56598 5010 | 50,8 | 2 | 10,0 | 70,0 | 85 | 2 | 360 | 3,00 | 40 | Request a Quote |
| 56598 6511 | 65,0 | 2-1/2 | 11,0 | 87,0 | 85 | 2 | 420 | 3,15 | 40 | Request a Quote |
| 56598 7511 | 75,0 | 3 | 11,0 | 97,0 | 85 | 4 | 460 | 4,90 | 40 | Request Quote |
| 56598 8012 | 80,0 | 12,0 | 104,0 | 85 | 4 | 480 | 5,30 | 40 | Request a Quote | |
| 56598 0212 | 101,6 | 4 | 12,0 | 125,6 | 85 | 4 | 520 | 7,10 | 40 | Request a Quote |
| 56598 1213 | 125,0 | 5 | 13,0 | 151,0 | 85 | 4 | 620 | 9,10 | 40 | Request a Quote |
 |
