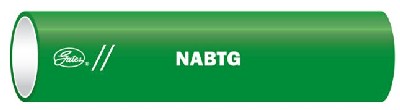

Gates - Nylon Air Brake Tubing - Green
Vendor: Gates
Category: Hydraulic Hose
Application:
Truck, bus and mobile air brake, and service lines where heat and battery acids are not present. Conforms to SAE J844 specifications. Meets DOT FMVSS 106-74 and SAE J844 requirements.
Tube:
Heat and light stabilized seamless extruded nylon.
Cover:
Nylon. Green (NABTG).
Temperature:
-40°F to +200°F (-40°C to +93°C).
Branding:
Gates® NABTG
Couplings:
Gates DOT SureLok™ Couplings
Colors:
Green
| OD | Wall Nominal | Type* | Color | Work. Press. Max. |
Burst Minimum | Bend Rad. Min. |
Weight Ref. | Bulk Length | Item Number | Request a Quote |
| in. | inch | psi | psi | in. | lbs/ft | feet | ||||
| 1/4 | 0.039 | A | Green | 150 | 1204 | 1 | 0.01 | 1000 | 4327-0104 | Request Quote |
| 3/8 | 0.063 | B | Green | 150 | 1407 | 1.25 | 0.03 | 1000 | 4327-1003 | Request Quote |
| 3/8 | 0.064 | B | Green | 150 | 1407 | 1.25 | 0.03 | 500 | 4327-0129 | Request Quote |
| 1/2 | 0.093 | B | Green | 150 | 957 | 2 | 0.04 | 500 | 4327-0132 | Request Quote |
| 5/8 | 0.091 | B | Green | 150 | 899 | 2.5 | 0.07 | 250 | 4327-1006 | Request Quote |
| 3/4 | 0.091 | B | Green | 150 | 798 | 3 | 0.09 | 50 | 4327-0062 | Request Quote |
*Type A is non-reinforced by DOT for air brake systems (use for service lines only).
Type B is reinforced with one ply of fibrous nylon.
Type B is reinforced with one ply of fibrous nylon.
 |
