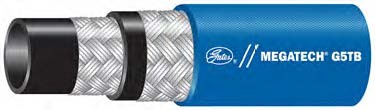

Gates - MEGATECH® G5TB OIL-AIR RETURN Hose
Vendor: Gates
Category: Hydraulic Hose
Application:
Pressurized hot oil return lines and rotary oil lines.
Tube:
True–bore black tube specifically compounded for temperature and chemical resistance (CPE).
Reinforcement:
Two braids of high-tensile steel wire.
Cover:
Blue, oil and mildew resistant textile braid, impregnated with synthetic rubber.
Temperature:
Petroleum–base fluids: –40°F to +300°F (–40°C to +149°C). Phosphate esters fluids as recommended by the fluid manufacturer, but within a range of –40°F to +212°F (–40°C to +100°C).
Couplings:
GL Couplings (–24 and –32) (G43) Section M
GlobalSpiral™ Plus Couplings (–24 and –32) (G22) Section E
MegaCrimp® Couplings (G25) Section G
| Part No. | Description | Product No. | ID | OD | WP (psi) | Min. Burst (psi) | MBR (in) | Request a Quote |
| 85391 | 4MEGATECH G5TB X50FT | 4657-4070 | 1/4 | 0.58 | 3000 | 12000 | 2 | Request Quote |
| 71023 | 4MEGATECH G5TBXREEL | 4657-2183 | 1/4 | 0.58 | 3000 | 12000 | 2 | Request Quote |
| 85392 | 6MEGATECH G5TB X50FT | 4657-4071 | 3/8 | 0.76 | 3000 | 12000 | 2.5 | Request Quote |
| 71024 | 6MEGATECH G5TBXREEL | 4657-2184 | 3/8 | 0.76 | 3000 | 12000 | 2.5 | Request Quote |
| 85393 | 8MEGATECH G5TB X50FT | 4657-4072 | 1/2 | 0.87 | 3000 | 12000 | 3.5 | Request Quote |
| 71025 | 8MEGATECH G5TBXREEL | 4657-2185 | 1/2 | 0.87 | 3000 | 12000 | 3.5 | Request Quote |
| 71066 | 10MEGATECH G5TBXREEL | 4657-2186 | 5/8 | 0.98 | 2000 | 8000 | 4 | Request Quote |
| 71067 | 12MEGATECH G5TBXREEL | 4657-2187 | 3/4 | 1.12 | 2000 | 8000 | 4.7 | Request Quote |
| 85396 | 16MEGATECH G5TB X50FT | 4657-4075 | 1 | 1.34 | 1000 | 4000 | 6 | Request Quote |
| 71026 | 16MEGATECH G5TBXREEL | 4657-2188 | 1 | 1.34 | 1000 | 4000 | 6 | Request Quote |
| 85398 | 20MEGATECH G5TB X25FT | 4657-4079 | 1 1/4 | 1.7 | 1000 | 4000 | 8.5 | Request Quote |
| 85397 | 20MEGATECH G5TB X50FT | 4657-4076 | 1 1/4 | 1.7 | 1000 | 4000 | 8.5 | Request Quote |
| 71027 | 20MEGATECH G5TBXCTN | 4657-2189 | 1 1/4 | 1.7 | 1000 | 4000 | 8.5 | Request Quote |
| 85395 | 24MEGATECH G5TB X25FT | 4657-4080 | 1 1/2 | 1.94 | 500 | 2000 | 9.5 | Request Quote |
| 85394 | 24MEGATECH G5TB X50FT | 4657-4077 | 1 1/2 | 1.94 | 500 | 2000 | 9.5 | Request Quote |
| 71028 | 24MEGATECH G5TBXCTN | 4657-2190 | 1 1/2 | 1.94 | 500 | 2000 | 9.5 | Request Quote |
| 85400 | 32MEGATECH G5TB X25FT | 4657-4081 | 2 | 2.53 | 500 | 2000 | 10.5 | Request Quote |
| 85399 | 32MEGATECH G5TB X50FT | 4657-4078 | 2 | 2.53 | 500 | 2000 | 10.5 | Request Quote |
| 71029 | 32MEGATECH G5TBXCTN | 4657-2191 | 2 | 2.53 | 500 | 2000 | 10.5 | Request Quote |
 |
