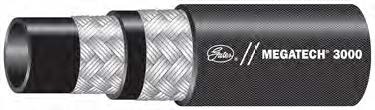

Gates - MEGATECH® 3000 HIGH-TEMP OIL-AIR RETURN
Vendor: Gates
Category: Hydraulic Hose
Application:
Pressurized hot oil return lines and rotary oil lines.
Tube:
True–bore black tube specifically compounded for temperature and chemical resistance (CPE).
Reinforcement:
Two braids of high-tensile steel wire.
Cover:
Oil and mildew resistant, textile braid, impregnated with synthetic rubber.
Temperature:
Petroleum–base fluids: –40°F to +300°F (–40°C to +149°C).
Phosphate esters fluids as recommended by the fluid manufacturer, but within a range of –40°F to +212°F (–40°C to +100°C).
Couplings:
MegaCrimp® Couplings (G25) Section G
| Part No. | Description | Product No. | ID | OD | WP (psi) | Min. Burst (psi) | MBR (in) | Vacuum | Request a Quote |
| 70960 | 4MEGATECH 3000XREEL | 4657-2373 | 1/4 | 0.59 | 3000 | 12000 | 2 | 30 | Request Quote |
| 85987 | 4MEGATECH3000 X50FT | 4657-4116 | 1/4 | 0.59 | 3000 | 12000 | 2 | 30 | Request Quote |
| 70961 | 6MEGATECH 3000XREEL | 4657-2374 | 3/8 | 0.74 | 3000 | 12000 | 2.5 | 30 | Request Quote |
| 85988 | 6MEGATECH3000 X50FT | 4657-4117 | 3/8 | 0.74 | 3000 | 12000 | 2.5 | 30 | Request Quote |
| 70962 | 8MEGATECH 3000XREEL | 4657-2319 | 1/2 | 0.86 | 3000 | 12000 | 3.5 | 30 | Request Quote |
| 85989 | 8MEGATECH3000 X50FT | 4657-4118 | 1/2 | 0.86 | 3000 | 12000 | 3.5 | 30 | Request Quote |
 |
