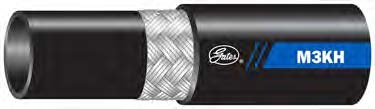

Gates - GLOBAL M3KH MEGA3000® HOSE - HIGH-TEMP - SAE 100R17
Vendor: Gates
Category: Hydraulic Hose
Application:
Elevated temperature high–pressure hydraulic oil lines. Exceeds ISO
18752 Grade C, SAE 100R17 and ISO 11237 R17 requirements and
performance requirements of EN 857 1SC. M3KH hose has smaller
exterior dimensions and significantly tighter bend radius than other SAE
100R1 and 100R2 hose.
Meets Flame Resistance Acceptance Designation "MSHA 2G" and ISO 11237 R17. Tested to Industry Leading 600,000 impulse cycles.
Tube:
Black, oil resistant, synthetic rubber (Nitrile)
Reinforcement:
Braided, high–tensile steel wire. –4, –5, –6 and –8 sizes are one braid; –10, –12 and –16 sizes are two braid.
Cover:
Black, oil, abrasion and weather resistant, synthetic rubber (Polychloroprene), with color coded layline. Also available with unique abrasion resistant MegaTuff® cover.
Temperature:
-40°F to +250°F (-40°C to +121°C)
Couplings:
Contact JGB for proper fitting recommendation and coupling procedure.
| Part No. | Description | Product No. | Standard Pack | Hose ID | Hose OD | WP | Min. Burst | MBR | Request a Quote |
| In. | In. | psi | psi | In. | |||||
| 70898 | 4M3KHXREEL | 4657-2664 | 440 | 1/4 | 0.48 | 3250 | 13000 | 2 | Request Quote |
| 70789 | 5M3KHXREEL | 4657-4055 | 330 | 5/16 | 0.6 | 3250 | 13000 | 2.2 | Request Quote |
| 70899 | 6M3KHXREEL | 4657-2696 | 330 | 3/8 | 0.65 | 3250 | 13000 | 2.5 | Request Quote |
| 70953 | 8M3KHXREEL | 4657-1360 | 220 | 1/2 | 0.8 | 3250 | 13000 | 3.5 | Request Quote |
| 70954 | 10M3KHXREEL | 4657-1361 | 220 | 5/8 | 0.99 | 3250 | 13000 | 4 | Request Quote |
| 70955 | 12M3KHXREEL | 4657-1362 | 220 | 3/4 | 1.15 | 3250 | 13000 | 4.8 | Request Quote |
| 70907 | 16M3KHXREEL | 4657-1363 | 165 | 1 | 1.48 | 3250 | 13000 | 6 | Request Quote |
 |
