Jackson Industries - PWCO/PBCO Series - Polypropylene Braided Convoluted PTFE Hose
Vendor: Jackson Industries
Category: Fluoropolymer Hose
| Applications: |
|

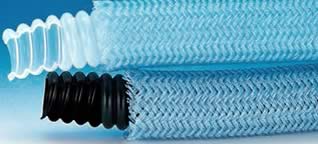

| Construction: | The PWCO series has been designed for use where hose flexibility is required but stainless steel braid is unsuitable. The PWCO series is constructed of vacuum-formed white, helical, open-pitch convoluted PTFE tubing which is reinforced with a polypropylene overbraid. The PBCO series has a black conductive inner tubing which serves to dissipate electrostatic charges. |
| Benefits: |
|
| Temperature Rating: | -65°F (-54°C) to +250°F (+120°C) |
| Part Number | Nominal Hose Size (in) |
Max Working Pressure |
Min Burst Pressure |
Vacuum Rating HG |
Min Bend Radius (in) |
Approx. Weight/Ft. |
Request Quote White |
Request Quote Black |
||
| White | Black | ID | OD | |||||||
| PWCO-12 | PBCO-12 | .75 | 1.30 | 250 PSI | 1000 PSI | CF* | 2.5 | .20 lbs. | Request Quote | Request Quote |
| PWCO-16 | PBCO-16 | 1.00 | 1.60 | 250 PSI | 1000 PSI | CF* | 4.0 | .24 lbs. | Request Quote | Request Quote |
| PWCO-24 | PBCO-24 | 1.50 | 2.13 | 200 PSI | 800 PSI | CF* | 6.5 | .43 lbs. | Request Quote | Request Quote |
| PWCO-32 | PBCO-32 | 2.00 | 2.73 | 200 PSI | 800 PSI | CF* | 8.0 | .66 lbs. | Request Quote | Request Quote |
| PWCO-48 | PBCO-48 | 3.00 | 4.13 | 120 PSI | 480 PSI | CF* | 10.0 | 1.24 lbs. | Request Quote | Request Quote |
All pressures and vacuum ratings calculated at 70°F. *Contact
JGB for vacuum rating.
 |
