Jackson Industries - WCV/BCV SERIES - Convoluted Hose with Multiple Layers of PTFE
Vendor: Jackson Industries
Category: Fluoropolymer Hose
| Applications: |
|

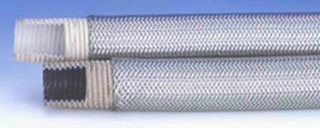

| Construction: | Jackson Industries WCV Series has a white, helical, convoluted inner tubing of multiple layers of PTFE, which is reinforced with PTFE- impregnated fiberglass and a stainless steel braid. The BCV series has a black, carbon filled, conductive inner tubing which serves to dissipate electrostatic charges. For high vacuum applications (HV) the hose is supported with a helical spring to resist collapse. |
| Benefits: |
|
| Temperature Rating: | -65°F (-54°C) to +400°F (+230 °C) |
| Part Number | Nominal Size (in.) |
Max Working Pressure |
Min Burst Pressure |
Vacuum Rating (in/HG) |
Min Bend Radius (in.) |
Approx Wt/Ft. |
Request Quote White |
Request Quote Black |
||
| White | Black | ID | OD | |||||||
| WCV-08 | BCV-08 | 0.50 | 0.82 | 1000 PSI | 4000 PSI | 28 | 1.0 | .20 lbs. | Request Quote | Request Quote |
| WCV-10 | BCV-10 | 0.62 | 0.91 | 1000 PSI | 4000 PSI | 28 | 2.0 | .26 lbs. | Request Quote | Request Quote |
| WCV-12 | BCV-12 | 0.75 | 1.07 | 1000 PSI | 4000 PSI | 28 | 2.5 | .33 lbs. | Request Quote | Request Quote |
| WCV-16 | BCV-16 | 1.00 | 1.34 | 1000 PSI | 4000 PSI | 25 | 3.0 | .43 lbs. | Request Quote | Request Quote |
| WCV-20 | BCV-20 | 1.25 | 1.57 | 1000 PSI | 4000 PSI | 20 | 6.2 | .53 lbs. | Request Quote | Request Quote |
| WCV-24 | BCV-24 | 1.50 | 1.81 | 750 PSI | 3000 PSI | 12 | 7.5 | .65 Ibs, | Request Quote | Request Quote |
| WCV-32 | BCV-32 | 2.00 | 2.32 | 500 PSI | 1800 PSI | 5 | 10.0 | .73 lbs. | Request Quote | Request Quote |
| WCV-24HV | BCV-24HV | 1.50 | 1.85 | 750 PSI | 3000 PSI | Full | 7.5 | .89 lbs. | Request Quote | Request Quote |
| WCV-32HV | BCV-32HV | 2.00 | 2.42 | 500 PSI | 2000 PSI | Full | 10.0 | 1.19 lbs. | Request Quote | Request Quote |
| WCV-48HV | BCV-48HV | 3.00 | 3.68 | 200 PSI | 1000 PSI | Full | 15.0 | 2.30 lbs. | Request Quote | Request Quote |
All pressures and vacuum ratings calculated at 70 ° F.
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
