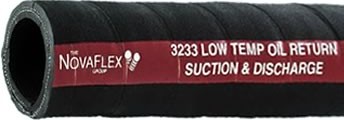

Novaflex - 3233 SAE 100R4 Low Temp Oil Return Hose

3233 SAE 100R4 Low Temp Oil Return Hose

Vendor: Novaflex

Category: Petroleum Hose    Sub Type: Petroleum Petro Transfer Hose


Application:

A special low temperature hydraulic return line that
meets or exceeds the requirements of SAE100R4 type
hose. This hose provides good flexibility for those
hydraulic applications that operate in temperatures to -65°F.

Tube:

Special Low temperature nitrile

Reinforcement:

Polyester tire cord with steel helix

Cover:

Special black low temperature nitrile

Temperature:

-65°F to +180°F

Lengths:

100 ft.

Part No ID OD Plies MBR
(in)
VAC
(Hg)
WP
psi
WT
LBS/FT
Request Quote
3233BT-00750-00 3/4 1.24 2 2 30" 300 0.49 Request Quote
3233BT-01000-00 1 1.48 2 2 1/2 30" 250 0.55 Request Quote
3233BT-01250-00 1-1/4 1.73 2 3 30" 200 0.71 Request Quote
3233BT-01500-00 1-1/2 1.98 2 4 30" 150 0.80 Request Quote
3233BT-02000-00 2 2.52 2 6 30" 100 1.14 Request Quote
3233BT-02500-00 2-1/2 3.05 2 6 30" 100 1.58 Request Quote
3233BT-03000-00 3 3.56 2 8 30" 100 1.89 Request Quote
