Novaflex - 5770 / 5771 / 5772 Bulk Material Discharge Hose

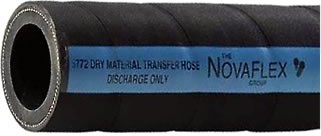

5770 / 5771 / 5772 Bulk Material Discharge Hose

Vendor: Novaflex

Category: Material Handling Hose    Sub Type: Material Handling Bulk Transfer Hose


Application:

Abrasion resistant hose designed for transferring dry bulk material such as cement, sand, lime, fertilizers etc. Static dissipating tube is designed to resist cutting and abrasion.

Cover is abrasion, age and weather resistant.

Tube:

Black abrasion resistant static conductive natural rubber blend

Reinforcement:

Multiple plies of tire cord

Cover:

Black synthetic rubber

Temperature:

-10°F to 180°F

Lengths:

100 ft.

Part No Type Tube Gauge ID OD Plies WP
psi
WT
LBS/FT
Request Quote
5770-04000-00 5770 1/8 4 4.45 2 100 1.57 Request Quote
5771-04000-00 5771 3/16 4 4.58 2 75 1.94 Request Quote
5772-04000-00 5772 1/4 4 4.70 2 75 2.44 Request Quote
5772-05000-00 5772 1/4 5 5.74 2 75 3.41 Request Quote
5772-06000-00 5772 1/4 6 6.74 2 75 4.04 Request Quote


Novaflex 5776 1/4" tube; suction/hardwall version available
Part No Type Tube Gauge ID OD Plies WP
psi
WT
LBS/FT
Request Quote
5776-04000-00 5776 1/4 4 6.95 2 75 4.25 Request Quote
