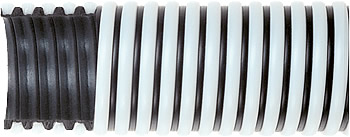

Pacific Echo - Spiralite 2000
Vendor: Pacific Echo
Category: Special Application
Application:
Transferring light chemical and fertilizer solutions. Septic service. Transferring light abrasives. Excellent flexibility and durability. Good chemical resistance.
Tube:
Black EPDM rubber tube
Reinforcement:
Natural poly-ethylene helix
Cover:
Corrugated wall, smooth interior
Temperature:
-30°F to 140°F
Lengths:
1" thru 6" 100ft
Category:
EPDM Rubber Suction Hose
| Nominal Size | Approx. O.D. | Recom. W.P. at 68°F | Vacuum Rating at 68°F | Recom. Min. Bend Radius at 68°F | Approx. B.P. at 68°F | Approx. Wt. | REQUEST QUOTE |
| inch | inch | psi | in/HG | inch | psi | lbs/ft | |
| 1 | 1.34 | 80 | 28 | 4 | 240 | .23 | Request a Quote |
| 1-1/4 | 1.61 | 70 | 28 | 5 | 210 | .30 | Request a Quote |
| 1-1/2 | 1.96 | 60 | 28 | 6 | 180 | .49 | Request a Quote |
| 2 | 2.49 | 60 | 28 | 9 | 180 | .69 | Request a Quote |
| 2-1/2 | 3.00 | 50 | 28 | 11 | 150 | .91 | Request a Quote |
| 3 | 3.60 | 50 | 28 | 12 | 150 | 1.03 | Request a Quote |
| 4 | 4.69 | 45 | 28 | 17 | 135 | 1.81 | Request a Quote |
| 6 | 6.86 | 35 | 20 | 27 | 105 | 3.84 | Request a Quote |
 |
