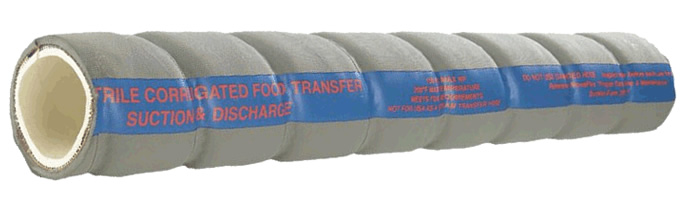

Novaflex - 6303 Corrugated Nitrile Food 150 Suction and Discharge Hose
Vendor: Novaflex
Category: Sanitary Food Grade
Sub Type: General Food Hose
Application:
This food transfer hose is designed to provide
maximum flexibility along with an abrasive resistant
cover.
Excellent for the transfer of oily product in full suction and discharge applications.
This ultra smooth microbe resistant tube is built on special stainless steel mandrels for cleanliness
Not for continuous steam service.
Tube:
White FDA Nitrile
Reinforcement:
Multiple plies of polyester tire cord with helix
Cover:
Grey PVC Nitrile
Temperature:
-40°F to +210°F (Cleaning in place to 248°F)
Lengths:
100ft
Colors:
other color hose covers red, black, white
| Part No | ID | OD | Plies | MAX WP psi |
MBR | Weight lb/Ft |
Request Quote |
| 6303WT-01500-00 | 1-1/2 | 2.08 | 2 | 150 | 6 | 0.73 | Request Quote |
| 6303WT-02000-00 | 2 | 2.55 | 2 | 150 | 7 | 0.98 | Request Quote |
| 6303WT-03000-00 | 3 | 3.57 | 2 | 150 | 9 | 1.53 | Request Quote |
| 6303WT-04000-00 | 4 | 4.57 | 2 | 150 | 12 | 1.99 | Request Quote |
 |
